Part#:M9U31202

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

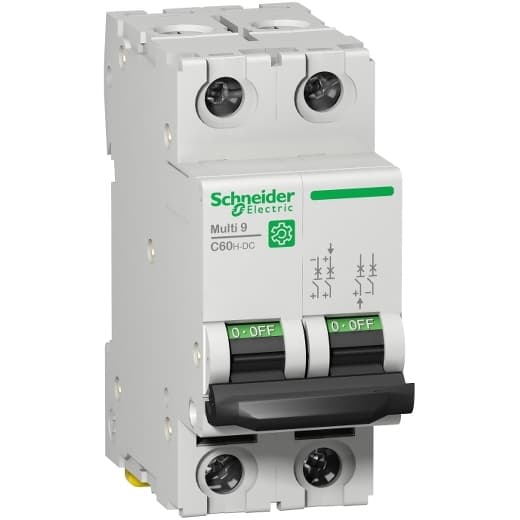

Schneider Electric M9U31202 is a Miniature Circuit Breaker (MCB) designed specifically for DC loads, falling under the C60H-DC sub-range. It features a 2-pole configuration with both poles protected, suitable for applications requiring a rated current of 2A and a rated voltage of up to 500Vdc. This MCB boasts a short circuit breaking rating of 5kA AIR at 500Vdc and operates with a D tripping curve. It is compliant with UL1077 standards, ensuring its suitability for a wide range of direct current applications.

Product Details

  • Breaking Capacity
    20 kA Icu 220 V DC EN/IEC 60947-2 10 kA Icu 440 V DC EN/IEC 60947-2 6 kA Icu 500 V DC EN/IEC 60947-2 5 kA AIR 12...500 V DC UL 1077 20 kA Icu 220 V DC GB 14048.2 10 kA Icu 440 V DC GB 14048.2 6 kA Icu 500 V DC GB 14048.2
  • [Ics] Rated Service Breaking Capacity
    7.5 kA 75 % EN/IEC 60947-2 - 440 V DC 4.5 kA 75 % EN/IEC 60947-2 - 500 V DC 15 kA 75 % EN/IEC 60947-2 - 220 V DC 7.5 kA 75 % GB 14048.2 - 440 V DC 4.5 kA 75 % GB 14048.2 - 500 V DC 15 kA 75 % GB 14048.2 - 220 V DC
  • Standards
    EN/IEC 60947-2 GB 14048.2 UL 1077
  • Product Certifications
    IEC CCC UR
  • [Ue] Rated Operational Voltage
    220 V DC 440 V DC 500 V DC
  • Connections - Terminals
    Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 4) - rigid stranded Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 6) - flexible Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AW
  • Electrical Durability
    3000 cycles 250 V DC L/R = 2 ms 6000 cycles 250 V DC
  • Number Of Protected Poles
    2
  • [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
  • Magnetic Tripping Limit
    10...14 x In DC
  • Utilisation Category
    Category A EN/IEC 60947-2
  • Suitability For Isolation
    Yes EN/IEC 60947-2
  • Network Type
    DC
  • Product Or Component Type
    Miniature circuit-breaker
  • Product Name
    Multi 9 C60H-DC
  • Earth-Leakage Protection
    Without
  • Wire Stripping Length
    0.55 in (14 mm) top or bottom
  • Mechanical Durability
    20000 cycles
  • Tightening Torque
    22.13 lbf.in (2.5 N.m) top or bottom
  • Color
    Gray
  • Net Weight
    0.28 lb(US) (0.128 kg)
  • Provision For Padlocking
    Padlockable
  • Height
    3.19 in (81 mm)
  • Depth
    2.87 in (73 mm)
  • 9 Mm Pitches
    4
  • Mounting Support
    DIN rail
  • Mounting Mode
    Clip-on
  • Width
    1.42 in (36 mm)
  • Local Signalling
    ON/OFF indication
  • Control Type
    Toggle
  • [Ui] Rated Insulation Voltage
    500 V DC EN/IEC 60947-2
  • Contact Position Indicator
    Yes
  • Curve Code
    D
  • Trip Unit Technology
    Thermal-magnetic
  • Device Application
    Distribution
  • Range
    Multi 9
  • Device Short Name
    C60H-DC
  • Line Rated Current
    2 A 77 °F (25 °C) EN/IEC 60947-2
  • Poles Description
    2P

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M9U31202 Related Documents
