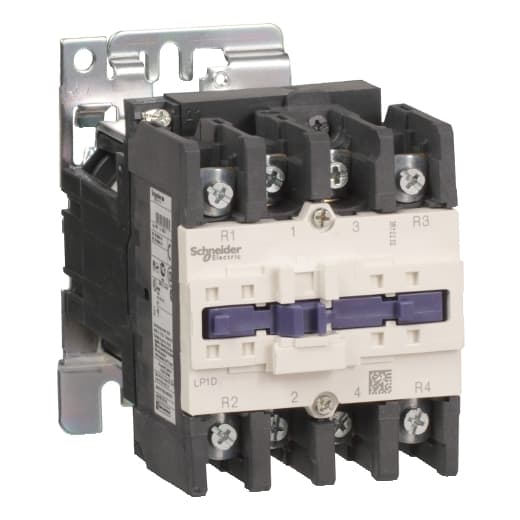

LP1D80008MD Schneider Electric Industrial Automation Components

Product Details

• Product Certifications
  BV CCC CSA DNV EAC GL LROS (Lloyds register of shipping) UL
• Standards
  CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
• Tightening Torque
  Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.21 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm Power circuit 106.21 lbf.in
• [Icw] Rated Short-Time Withstand Current
  135 A 104 °F (40 °C) - 10 min power circuit 320 A 104 °F (40 °C) - 1 min power circuit 640 A 104 °F (40 °C) - 10 s power circuit 990 A 104 °F (40 °C) - 1 s power circuit
• Control Circuit Voltage Limits
  0.1...0.3 Uc -40…158 °F (-40…70 °C) drop-out DC 0.85...1.1 Uc -40…131 °F (-40…55 °C) operational DC 1...1.1 Uc 131…158 °F (55…70 °C) operational DC
• Connections - Terminals
  Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)
• [Ui] Rated Insulation Voltage
  Power circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1
• Safety Reliability Level
  B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Operating Time
  6...20 ms opening 20...35 ms closing
• Associated Fuse Rating
  200 A gG <= 690 V type 1 power circuit 160 A gG <= 690 V type 2 power circuit
• [Ue] Rated Operational Voltage
  Power circuit <= 1000 V AC 25...400 Hz Power circuit <= 300 V DC
• Mounting Support
  Rail Plate
• Hold-In Power Consumption In W
  22 W 68 °F (20 °C)
• Time Constant
  75 ms
• Coil Technology
  Without built-in suppressor module
• Inrush Power In W
  22 W 68 °F (20 °C)
• Maximum Operating Rate
  3600 cyc/h 140 °F (60 °C)
• Mechanical Durability
  4 Mcycles
• Power Dissipation Per Pole
  12.5 W AC-1
• Front Cover
  Without
Electrical Durability
0.8 Mcycles 125 A AC-1 <= 440 V
Average Impedance
0.8 mOhm - Ith 125 A 50 Hz power circuit
Irms Rated Making Capacity
1100 A 440 V power circuit IEC 60947
Rated Breaking Capacity
1100 A 440 V power circuit IEC 60947
Coil Type
DC standard
[Uc] Control Circuit Voltage
220 V DC
Overvoltage Category
III
[Ith] Conventional Free Air Thermal Current
125 A 140 °F (60 °C) power circuit
[Ie] Rated Operational Current
125 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
[Uimp] Rated Impulse Withstand Voltage
8 kV IEC 60947
Power Pole Contact Composition
2 NO + 2 NC
Device Short Name
LP1D
Utilisation Category
AC-1
Poles Description
4P
Contactor Application
Resistive load
Product Or Component Type
Contactor
Range
TeSys
Product Name
TeSys D
