Part#:HJN36100

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

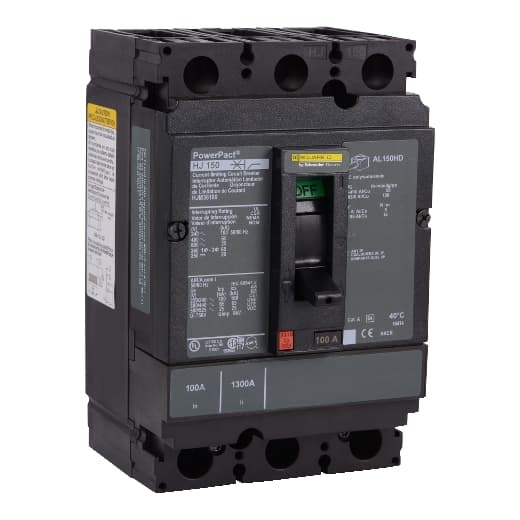

PowerPact H Circuit Breaker,ThermMagn,100A,3P,600V,25kA

Product Details

  • Electrical Connection
    Plug-in line Plug-in load
  • Continuous Current Rating
    80 %
  • Height
    6.4 in (162.56 mm)
  • Depth
    12.08 in (306.83 mm)
  • Width
    4.12 in (104.65 mm)
  • Breaking Capacity Code
    J
  • Line Rated Current
    100 A
  • Magnetic Hold Current
    900 A
  • Magnetic Tripping Current
    1700 A
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Range Of Product
    PowerPact H
  • Mounting Mode
    Plug-in

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
