Part#:HJL36150T

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

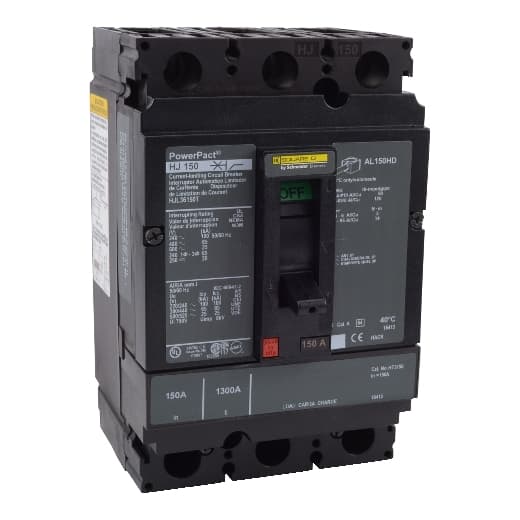

Square D by Schneider Electric HJL36150T is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range, featuring a removable/interchangeable trip unit PowerPact H-Frame 150 TMD 3P 150A 600Vac/250Vdc. It has lugs on both load and line sides for connection, with a 3-pole (3P) configuration. This MCCB offers thermal protection for overload and magnetic protection for short-circuit scenarios. It has a rated current of 150A, with a rated insulation voltage (Ui) of 750 V and a rated voltage (AC) of 600Vac 600Y/347Vac. Designed for individual unit mount on plate, it measures 163 mm in height, 104 mm in width, and 86 mm in depth, with an IP40 degree of protection. The operating mode is manual toggle, and protection settings include over-current fixed at 150A, short-circuit hold current fixed at 900A, and short-circuit trip current fixed at 1700A. Its rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 150 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 100kA (240Vac; UL489), 65kA (480Vac; UL489), 65kA (480Y/277Vac; UL489), 25kA (600Vac; UL489), 25kA (600Y/347Vac; UL489), and 20kA (250Vdc; UL489). The trip unit type is thermal-magnetic (fixed) with no display, and it falls under utilisation category A.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Continuous Current Rating
    80 %
  • Depth
    4.36 in (110.74 mm)
  • Width
    4.12 in (104.65 mm)
  • Height
    6.4 in (162.56 mm)
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Range Of Product
    PowerPact H
  • Magnetic Tripping Current
    1700 A
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Line Rated Current
    150 A
  • Mounting Mode
    Unit mount
  • Breaking Capacity Code
    J
  • Magnetic Hold Current
    900 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJL36150T on Powermatic Associates is $5,174.00. Order now.

HJL36150T Related Documents

Catalog-1631041212512.pdfProduct Datasheet-1631041212525.pdf

Similar products from: Schneider Electric Electronic Components

HDF36035 on Powermatic Associates

HDF36035

Schneider Electric

Square D by Schneider Electric HDF36035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HDF sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 35A and offers thermal protection for overload and magnetic protection for short-circuit scenarios. This MCCB has a rated insulation voltage (Ui) of 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. It is designed for individual unit mount on plate with a Term. nut kit for fixed busbar connection on both line and load sides. The HDF36035 has a net height of 163 mm, a net width of 104 mm, and a net depth of 86 mm, featuring an IP40 degree of protection. Its operating mode is manual toggle, with over-current protection settings fixed at 35A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 850A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 35 AT, with a frame current rating of 150 AF. Its short circuit breaking rating varies with voltage, including 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display, and it falls under utilisation category A.
