HJL36125T Schneider Electric Electronic Components

HJL36125T on Powermatic Associates
Schneider Electric

Part#:HJL36125T

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

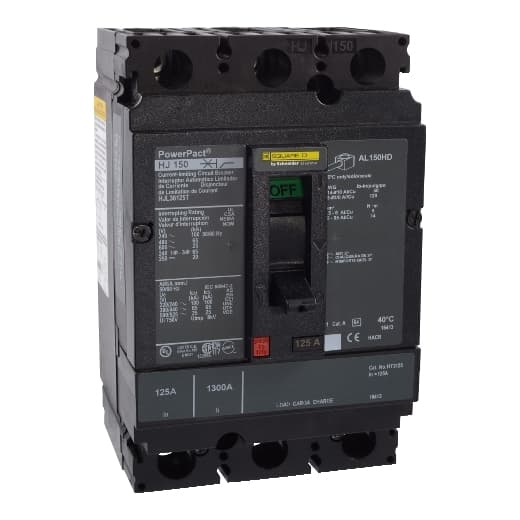

Square D by Schneider Electric HJL36125T is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range. It features a removable/interchangeable trip unit PowerPact H-Frame 150 TMD with 3 poles (3P) and a rated current of 125A. This MCCB is designed for a rated insulation voltage (Ui) of 750 V, rated voltage (AC) of 600Vac/600Y/347Vac, and a rated voltage (DC) of 250Vdc. It offers thermal protection for overload and magnetic protection for short-circuit situations. The connection type includes lugs on both load and line sides, and it is designed for individual unit mount on plate. The net dimensions are 163 mm in height, 104 mm in width, and 86 mm in depth, with a degree of protection of IP40. The operating mode is manual toggle, and it has fixed protection settings for over-current at 125A and short-circuit protection with hold current fixed at 900A and trip current fixed at 1700A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 125 AT, frame current rating is 150 AF, and it has a short circuit breaking rating that varies with voltage, up to 100kA at 240Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display, and it falls under utilisation category A.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Continuous Current Rating
    80 %
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Height
    6.4 in (162.56 mm)
  • Width
    4.12 in (104.65 mm)
  • Depth
    4.36 in (110.74 mm)
  • Magnetic Hold Current
    900 A
  • Line Rated Current
    125 A
  • Magnetic Tripping Current
    1700 A
  • Mounting Mode
    Unit mount
  • Breaking Capacity Code
    J
  • Product Or Component Type
    Circuit breaker
  • Number Of Poles
    3P
  • Range Of Product
    PowerPact H

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJL36125T on Powermatic Associates is $5,174.00. Order now.
