Part#:H267

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

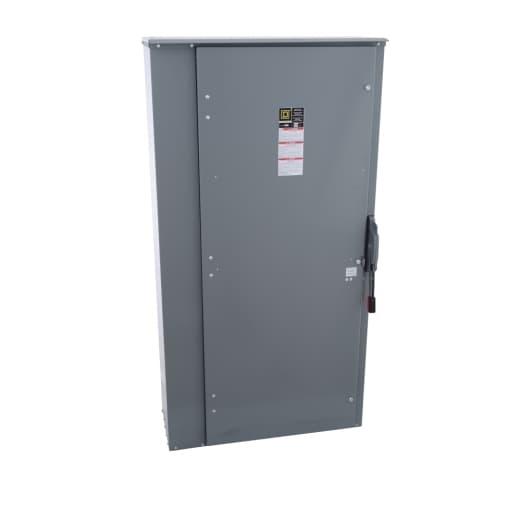

SWITCH FUSIBLE HD 600V 800A 2P NEMA1

Product Details

  • Depth
    17.75 in (450.85 mm)
  • Width
    36.62 in (930.15 mm)
  • Height
    69.13 in (1755.90 mm)
  • Net Weight
    360.90 lb(US) (163.7 kg)
  • Tightening Torque
    375 lbf.in (42.37 N.m) 0.13…0.59 in² (85.01…380 mm²) (AWG 3/0...750 kcmil)
  • Wire Size
    AWG 3/0...750 kcmil copper or aluminium
  • Wiring Configuration
    2-wire
  • Electrical Connection
    Lugs
  • Mounting Type
    Surface
  • Short Circuit Current Rating
    200 kA maximum L
  • Fuse Type
    L
  • Maximum Horse Power Rating
    50 hp 600 V at DC
  • Enclosure Rating
    NEMA 1 steel
  • Voltage Rating
    600 V AC/DC
  • Phase
    3 phase
  • Current Rating
    800 A
  • Number Of Poles
    2
  • Disconnect Type
    Fusible disconnect
  • Factory Installed Neutral
    None
  • Product
    Single Throw Safety Switch
  • Duty Rating
    Heavy duty
  • Device Application
    Heavy application

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
