EX15T3HFCUNLP Schneider Electric Electronic Components

EX15T3HFCUNLP on Powermatic Associates
Schneider Electric

Part#:EX15T3HFCUNLP

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

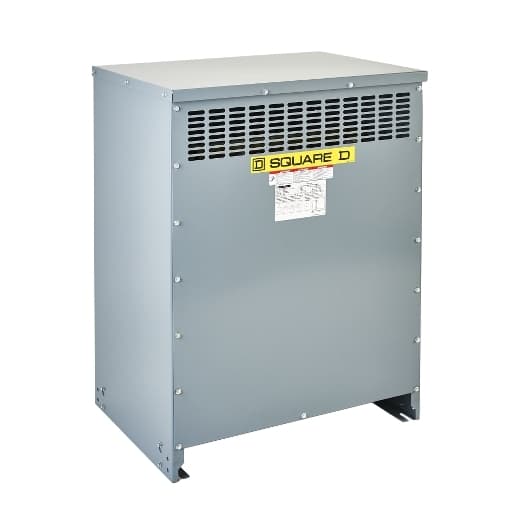

DOE 2016 LV XFMR, 3 Phase, K-13, 15kVA, 480 Delta-208Y/120, CU,

Product Details

  • Transformer BTU/HR
    265.032340832 16.6 % 289.5935 25 % 421.382 50 % 641.0295 75 % 948.536 1.0 %
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB18K Wall, with 7400WMB18K20K
  • Electrical Connection
    2 Hole Nema Pad primary 0.44 in (11.1 mm) 2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
  • Degree Of Protection
    UL type 1 UL type 2, with 7400DS18K UL type 3R, with 7400WS18K
  • Sound Level
    6 dB NEMA ST-20 39 dB
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Transformer Losses
    72.0 no load (core loss) 206.0 load loss (coil loss)
  • Temperature Rise
    115 °C 220 °C insulated
  • Net Weight
    400.01 lb(US) (181.44 kg)
  • Depth
    20.98 in (533 mm)
  • Width
    25.51 in (648 mm)
  • Height
    35.31 in (897 mm)
  • X/R Ratio
    0.78
  • Let Through Current
    2.4 kA
  • %IX
    0.0107 %
  • %IZ
    0.017 %
  • Basic IMP Level (BIL)
    10 kV
  • Coil Material
    Copper
  • DOE Efficiency
    98.25 % at 35 % load factor , 167 °F (75.0 °C)
  • Secondary Voltage
    208Y/120 V
  • Primary Voltage
    480 V delta
  • Network Frequency
    60 Hz
  • Rated Operational Power In VA
    15 kVA
  • Type Of Cooling
    Natural convection
  • Product Or Component Type
    Transformer
  • Phase
    3 phase
  • Device Application
    Low voltage electrical distribution
  • Transformer Type
    Energy efficient
  • Device Short Name
    DOE 2016
  • Range Of Product
    Square D

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
