EGB16015 Schneider Electric Industrial Automation Components
Part#:EGB16015
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

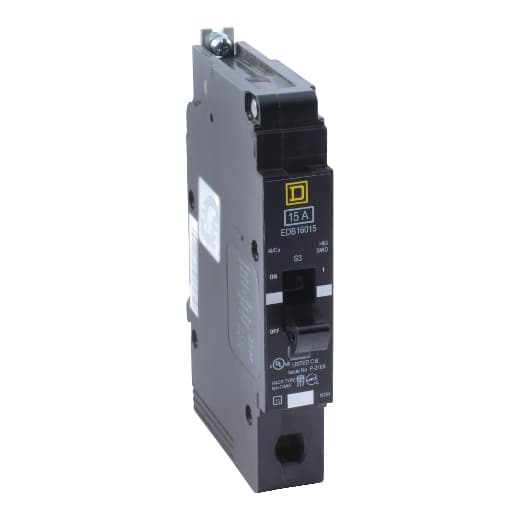

Square D by Schneider Electric EGB16015 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and operates at a rated voltage of 600 V AC. This MCB is intended for both equipment protection (EPD) and as a branch circuit breaker with a breaking capacity code G. It offers short-circuit and overload protection functions, utilizing an aluminium lugs connection for connectivity. The rated current is 15A, and it is a single-pole device compatible with a cross-section of 14-6AWG for one copper cable. The short circuit breaking rating stands at 18kA for 600Y/347Vac, and it employs a thermal-magnetic trip unit with a protection setting of 875A for the trip unit rating.
Product Details
- Protection Type Overload Short-circuit
- AWG Gauge AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper
- Depth 4.05 in (102.87 mm)
- Tightening Torque 30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)
- Trip Unit Technology Thermal-magnetic
- Width 0.98 in (24.89 mm)
- Breaking Capacity Code G
- Net Weight 2 lb(US) (0.91 kg)
- Height 5.66 in (143.76 mm)
- Local Signalling Trip indicator
- Number Of Spaces 1
- Mounting Mode Bolt-on
- Number Of Spaces Required 1
- Holding Current 270 A
- Product Destination NF panelboard
- Number Of Poles 1
- Circuit Breaker Application HACR rated
- Electrical Connection Lugs aluminium
- Breaking Capacity 18 kA 600Y/347 V AC
- Line Rated Current 15 A
- Trip Unit Rating 875 A
- Module Type E-Frame
- Maximum Operating Voltage 600Y/347 V AC
- Range Of Product 125 A Frame EDB-EGB-EJB
- Device Short Name EGB
- Product Or Component Type Circuit-breaker
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EGB16015 on Powermatic Associates is $255.00. Order now.
