EGB14025 Schneider Electric Industrial Automation Components
Part#:EGB14025
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

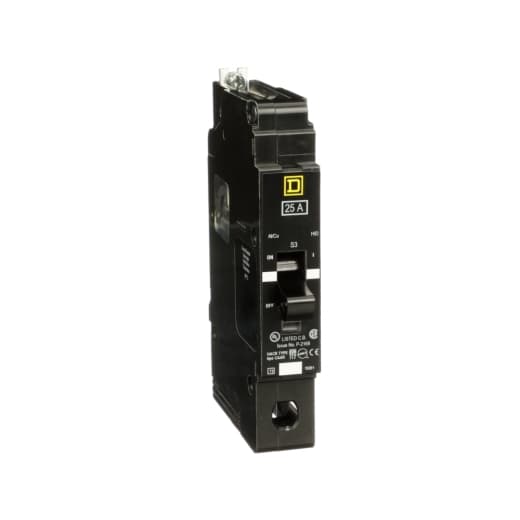

Square D by Schneider Electric EGB14025 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and is rated for 277V AC. This MCB offers protection functions against short-circuit and overload conditions and serves as both an Equipment Protection Device (EPD) and a Circuit Breaker (CB) with a breaking capacity code G. It utilizes an aluminium lugs connection and supports a rated current of 25A across 1 Pole(s). The cross-section compatibility is 14-6AWG for a single copper cable. Its short circuit breaking rating is specified at 65kA for 120Vac, 35kA for 240Vac, and 35kA for 277Vac. The EGB14025 employs a thermal-magnetic trip unit with protection settings at a trip unit rating of 875A.
Product Details
- Breaking Capacity 35 kA 277 V AC 35 kA 240 V AC 65 kA 120 V AC 35 kA 120/240 V AC
- AWG Gauge AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper
- Circuit Breaker Application HID rated HACR rated
- Protection Type Overload Short-circuit
- Depth 4.05 in (102.87 mm)
- Height 5.66 in (143.76 mm)
- Width 0.98 in (24.89 mm)
- Tightening Torque 30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)
- Breaking Capacity Code G
- Net Weight 2 lb(US) (0.91 kg)
- Trip Unit Technology Thermal-magnetic
- Number Of Spaces Required 1
- Product Destination NF panelboard
- Number Of Spaces 1
- Holding Current 270 A
- Mounting Mode Bolt-on
- Local Signalling Trip indicator
- Electrical Connection Lugs aluminium
- Number Of Poles 1
- Maximum Operating Voltage 277 V AC
- Trip Unit Rating 875 A
- Line Rated Current 25 A
- Module Type E-Frame
- Device Short Name EGB
- Product Or Component Type Miniature circuit-breaker
- Range Of Product 125 A Frame EDB-EGB-EJB
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EGB14025 on Powermatic Associates is $255.00. Order now.
