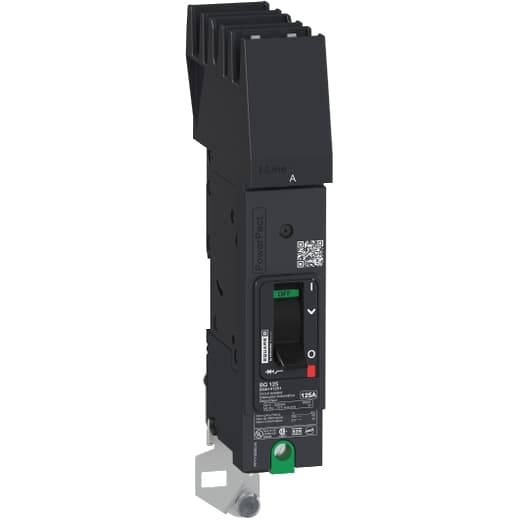

BGA140303 Schneider Electric Electronic Components

Product Details

• Breaking Capacity
  65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480Y/277 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 20 kA 125 V DC UL 489
• Tightening Torque
  31.86…38.94 lbf.in (3.6…4.4 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 44.25…54.87 lbf.in (5…6.2 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
• Electrical Connection
  I-Line connection line Lugs load
• Quantity Per Set
  Set of 1
• Height
  5.39 in (137 mm)
• Net Weight
  1.41 lb(US) (0.6375 kg)
• Phase Connection
  B
• Depth
  3.50 in (89 mm)
• Color
  Grey (RAL 7016)
• Power Wire Stripping Length
  0.79 in (20 mm)
• Width
  1.06 in (27 mm)
• 9 Mm Pitches
  3
• AWG Gauge
  AWG 14...AWG 2/0 aluminium/copper
• Local Signalling
  for presence of auxiliary contacts flag (green)
• Mounting Height
  1.50 in (38.1 mm)
• Mounting Mode
  I-Line
• Connection Pitch
  1.06 in (27 mm)
• Electrical Durability
  10000 cycles IEC 947-1 Annex K ed 5.2 240 V In
• Mechanical Durability
  20000 cycles IEC 947-1 Annex K ed 5.2
• Utilisation Category
  Category A
Continuous Current Rating
80 %
Trip Unit Technology
Thermal-magnetic
[Uimp] Rated Impulse Withstand Voltage
8 kV IEC 60947-2
[Ue] Rated Operational Voltage
240 V AC 50/60 Hz UL 489
Control Type
Toggle
Suitability For Isolation
Yes conforming to IEC 60947-2
[Ui] Rated Insulation Voltage
800 V IEC 60947-2
Breaking Capacity Code
G
Product Or Component Type
Circuit breaker
[Ics] Rated Service Breaking Capacity
65 kA 220...240 V AC 50/60 Hz IEC 60947-2
Device Application
Distribution
Number Of Poles
1P
Line Rated Current
30 A
Product Name
PowerPact B
Device Short Name
BG 030
Range
PowerPact
