BGA140451 Schneider Electric Industrial Automation Components

BGA140451 on Powermatic Associates
Schneider Electric

Part#:BGA140451

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

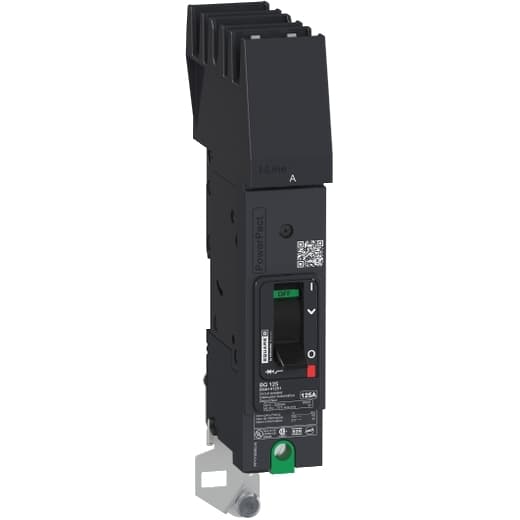

Square D by Schneider Electric BGA140451 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGA sub-range, featuring a PowerPact B-Frame 100 TMD 1P 45A 480Y/277Vac 35kA I-line design. It has a rated impulse voltage (Uimp) of 8 kV and utilizes an I-line connection (A phase) with a degree of protection rated at IP40. The rated current is 45A, with an AC rated voltage of 480Vac 480Y/277Vac, and it offers mechanical durability of 20,000 operations at no load. This MCCB is designed for mounting on I-line with line side isolated plug-on jaws plus a mechanical I-Line bracket mechanism for robust attachment. It is a 1-pole (1P) device with dimensions of 137 mm in height, 89 mm in depth, and 27 mm in width. The utilisation category is A, and it includes protection settings for over-current fixed at 45A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated DC voltage is 125Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 240 V. Protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 45 AT. Its electrical durability with load is 10,000 operations at 240Vac; In, and it has a frame current rating of 100 AF. The operating mode is toggle (manual), and it has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, and 20kA at 250Vdc, all in accordance with UL489. The trip unit type is thermal-magnetic (fixed) with no display.

Product Details

  • Breaking Capacity
    65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480Y/277 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 20 kA 125 V DC UL 489
  • Electrical Connection
    I-Line connection line Lugs load
  • Tightening Torque
    31.86…38.94 lbf.in (3.6…4.4 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 44.25…54.87 lbf.in (5…6.2 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
  • Quantity Per Set
    Set of 1
  • Phase Connection
    A
  • Net Weight
    1.41 lb(US) (0.6375 kg)
  • Depth
    3.50 in (89 mm)
  • Width
    1.06 in (27 mm)
  • Height
    5.39 in (137 mm)
  • 9 Mm Pitches
    3
  • Color
    Grey (RAL 7016)
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Mounting Height
    1.50 in (38.1 mm)
  • Mounting Mode
    I-Line
  • Connection Pitch
    1.06 in (27 mm)
  • AWG Gauge
    AWG 14...AWG 2/0 aluminium/copper
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 240 V In
  • Mechanical Durability
    20000 cycles IEC 947-1 Annex K ed 5.2
  • Utilisation Category
    Category A
  • [Ics] Rated Service Breaking Capacity
    65 kA 220...240 V AC 50/60 Hz IEC 60947-2
  • Continuous Current Rating
    80 %
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Suitability For Isolation
    Yes conforming to IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz UL 489
  • Breaking Capacity Code
    G
  • Number Of Poles
    1P
  • Device Application
    Distribution
  • Line Rated Current
    45 A
  • Control Type
    Toggle
  • Product Or Component Type
    Circuit breaker
  • Device Short Name
    BG 045
  • Product Name
    PowerPact B
  • Range
    PowerPact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BGA140451 Related Documents

Catalog-1631034335805.pdfProduct Datasheet-1631034335756.pdfInstruction Sheet-1631034335753.pdf
