BDF36100 Schneider Electric Industrial Automation Components

BDF36100 on Powermatic Associates
Schneider Electric

Part#:BDF36100

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

7 in stock

Apr 16, 2025

Product description

Square D by Schneider Electric BDF36100 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 100A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type is a terminal nut kit for fixed busbar connection on both line and load sides, offering a degree of protection of IP40. This MCCB has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. It includes three poles (3P) and has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. The utilisation category is A, with protection settings including over-current fixed at 100A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. It also features thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 100 AT. The electrical durability with load is 10,000 operations at 440Vac; In, and it has a frame current rating of 100 AF. The operating mode is toggle (manual), with a short circuit breaking rating of 25kA at 240Vac, 18kA at 480Vac, 18kA at 480Y/277Vac, 14kA at 600Y/347Vac according to UL489, and 10kA at 250Vdc. The trip unit type is thermal-magnetic (fixed) without a display.

Product Details

  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 18 kA 240 V AC 50/60 Hz UL 489 Icu 25 kA 480/277 V AC 50/60 Hz UL 489 Icu 14 kA 480 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 14 kA 250 V DC UL 489 25 kA Icu 18 kA
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • AWG Gauge
    AWG 14...AWG 8 aluminium/copper AWG 6...AWG 3/0 aluminium/copper
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Quantity Per Set
    Set of 1
  • Net Weight
    2.04 lb(US) (0.924 kg)
  • Depth
    3.15 in (80 mm)
  • Width
    3.19 in (81 mm)
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Electrical Connection
    Terminal nut ON and OFF end
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex K ed 5.2
  • Suitability For Isolation
    Yes IEC 60947-2
  • Trip Unit Name
    TM-D
  • Continuous Current Rating
    80 %
  • Breaking Capacity Code
    D
  • Control Type
    Toggle
  • Product Name
    PowerPact B
  • Device Short Name
    BD 100
  • 9 Mm Pitches
    9
  • Height
    5.39 in (137 mm)
  • Color
    Grey (RAL 7016)
  • Connection Pitch
    1.06 in (27 mm)
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Utilisation Category
    Category A
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Protected Poles Description
    3t
  • Number Of Poles
    3P
  • Line Rated Current
    100 A
  • Device Application
    Distribution
  • Product Or Component Type
    Circuit breaker
  • Range
    PowerPact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDF36100 on Powermatic Associates is $1,195.00. Order now.

BDF36100 Related Documents

Product Datasheet-1631034109868.pdfInstruction Sheet-1631034109871.pdfCatalog-1631034109872.pdf

Similar products from: Schneider Electric Industrial Automation Components

MG17444 on Powermatic Associates

MG17444

Schneider Electric

Schneider Electric MG17444 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. This 2-pole MCB is rated for a current of 5A and has an operating voltage (Ue) of 480V. It features a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 480Y/277Vac, and 10kA AIR at 125Vdc. Both poles are protected, and it utilizes a C tripping curve.

2 in stock
LC1D506G7 on Powermatic Associates

LC1D506G7

Schneider Electric

Schneider Electric LC1D506G7 is a magnetic contactor from the Deca sub-range, designed for ring-lugs connections. It features 3 poles (3P; 3NO) and is rated for currents of 80A (AC-1) and 50A (440Vac; AC-3). This contactor is suitable for DIN rail mounting and offers a degree of protection of IP20. The control voltage (AC) ranges from 96-132Vac (120Vac nominal; 50Hz; 0.8...1.1 x Uc) to 102-132Vac (120Vac nominal; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 690 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. Its rated active power (kW) spans from 15kW at 220-230Vac to 33kW at 660-690Vac, all in AC-3 category. The rated power (HP) varies from 3HP at 115Vac in single-phase to 40HP at 575-600Vac in three-phase, under UL/CSA standards. The mechanical durability of this contactor is rated at 15 million operations at no load, and it supports a phase-to-phase rated voltage (AC) of 690 V.

1 in stock
LC1DT20BL on Powermatic Associates

LC1DT20BL

Schneider Electric

Schneider Electric LC1DT20BL is a magnetic contactor from the Deca sub-range, designed with a low-consumption coil that uses less than 2.4W. It features screw connections for secure installation and operates with 4 poles (4NO) capable of handling a rated current of 20A under AC-1 conditions. This contactor is designed for DIN rail mounting, ensuring a compact and efficient setup with a net width of 45 mm. It offers a degree of protection rated at IP20 and operates with a control voltage range of 19.2-30Vdc, nominally at 24Vdc, which is 0.8 to 1.25 times the control voltage (Uc). The LC1DT20BL can handle a rated operating voltage (Ue) up to 690 V and is equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both rated for instantaneous operation. The contacts are designed to withstand a rated impulse voltage (Uimp) of 6 kV. With mechanical durability rated at 15 million operations at no load, this contactor is built for longevity. It supports a phase-to-phase rated voltage (AC) of 690 V and maintains a power consumption of 2.4 W.

2 in stock
LC1D95G7 on Powermatic Associates

LC1D95G7

Schneider Electric

Schneider Electric LC1D95G7 is a magnetic contactor from the Deca sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 125A (AC-1) and 95A (440Vac; AC-3), with a mounting mode designed for DIN rail installation. The net width of the contactor is 85 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 96-132Vac (120Vac nominal; 50Hz; 0.8...1.1 x Uc) to 102-132Vac (120Vac nominal; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 1000 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 8 kV. Its rated active power (kW) spans from 25kW at 220-230Vac to 45kW at up to 440Vac, reaching 55kW at 500Vac, and maintaining 45kW at 660-690Vac and 1000Vac, all in AC-3 category. The rated power (HP) varies from 7.5HP at 115Vac in single-phase to 60HP at 575-600Vac in three-phase, under UL/CSA standards. The mechanical durability of the LC1D95G7 is rated at 4,000,000 operations, with an electrical durability (with load) of 1,200,000 operations. The rated voltage (AC) for phase-to-phase connections is 1000 V.

11 in stock
AZ5DE015 on Powermatic Associates

AZ5DE015

Schneider Electric

Schneider Electric - AZ5DE015

93 in stock
3100800401 on Powermatic Associates

3100800401

Schneider Electric

Flange Mounted Handle Gasket

1 in stock

This item can ship within 24h!

Manufacturer warranty

BDF36100 Schneider Electric

$1,195.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

7

Select Qty:

$1,195.00

$1,195.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare BDF36100 with other Industrial Automation Components products

Breaking Capacity

[Ics] Rated Service Break...

Number Of Slots

AWG Gauge

Mounting Mode

Tightening Torque

Quantity Per Set

Net Weight

Depth

Width

Selected product

BDF36100
7 in stock
BDF36100
Schneider Electric

Square D by Schneider Electric BDF36100 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity25 kA 208Y/120 V AC 50/60 Hz...

[Ics] Rated Service Breaking Capacity25 kA 220...240 V AC 50/60 H...

Number Of Slots1 auxiliary switch OF plug-i...

AWG GaugeAWG 14...AWG 8 aluminium/cop...

Mounting ModeClip-on 35 mm symmetrical DI...

Tightening Torque44.25 lbf.in (5 N.m) 0.00…0....

Quantity Per SetSet of 1

Net Weight2.04 lb(US) (0.924 kg)

Depth3.15 in (80 mm)

Width3.19 in (81 mm)

BDF36015
4 in stock
BDF36015
Schneider Electric

Square D by Schneider Electric BDF36015 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity25 kA 208Y/120 V AC 50/60 Hz...

[Ics] Rated Service Breaking Capacity-

Number Of Slots-

AWG Gauge-

Mounting Mode-

Tightening Torque-

Quantity Per Set-

Net Weight-

Depth-

Width-

BDL36020
16 in stock
BDL36020
Schneider Electric

Square D by Schneider Electric BDL36020 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity25 kA 208Y/120 V AC 50/60 Hz...

[Ics] Rated Service Breaking Capacity-

Number Of Slots-

AWG Gauge-

Mounting Mode-

Tightening Torque-

Quantity Per Set-

Net Weight-

Depth-

Width-

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

Relevant products

BDF36015 on Powermatic Associates

BDF36015

Verified stock: 4

Square D by Schneider Electric BDF36015 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 15A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type is a terminal nut kit for fixed busbar connection on both line and load sides, offering a degree of protection of IP40. This MCCB has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. It has 3 poles (3P) and falls under utilisation category A. The dimensions are 137 mm in height, 80 mm in depth, and 81 mm in width. Its protection settings include over-current fixed at 15A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V. It offers thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 15 AT. The electrical durability with load is 10,000 operations at 440Vac. It has a frame current rating of 100 AF and operates via a toggle (manual). The short circuit breaking rating varies with voltage, including 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

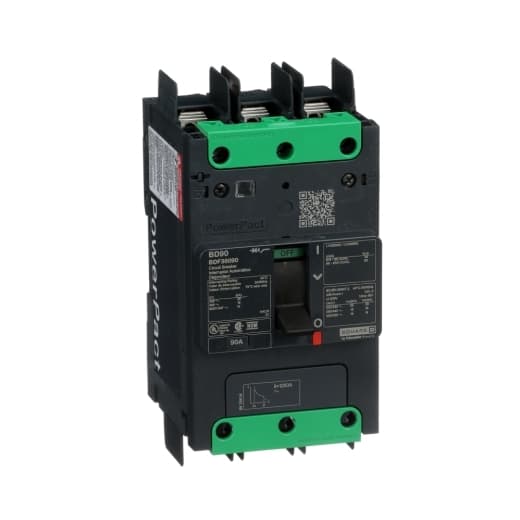

BDF36090 on Powermatic Associates

BDF36090

Verified stock: 0

Square D by Schneider Electric BDF36090 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design with a rated current of 90A and a rated voltage of 600Vac 600Y/347Vac. It has a rated impulse voltage (Uimp) of 8 kV and offers a connection via Term. nut kit for fixed busbar connection on both line and load sides. The degree of protection is IP40, and it is designed for mounting either fixed on DIN rail or as an individual unit mount on plate. This 3-pole (3P) circuit breaker has a net height of 137 mm, a net depth of 80 mm, and a net width of 81 mm. It falls under utilisation category A and features protection settings including over-current fixed at 90A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V, and it provides thermal and magnetic protection functions. The trip current rating is 90 AT, and it has a frame current rating of 100 AF. The operating mode is toggle (manual), and it has a short circuit breaking rating of 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

BDF36025 on Powermatic Associates

BDF36025

Verified stock: 0

Square D by Schneider Electric BDF36025 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 25A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type is a terminal nut kit for fixed busbar connection on both line and load sides, and it offers a degree of protection of IP40. This MCCB has a mechanical durability of 15,000 operations and can be mounted either on a DIN rail or as an individual unit on a plate. It has 3 poles (3P) and falls under the utilisation category A. The dimensions are 137 mm in height, 80 mm in depth, and 81 mm in width. Its protection settings include over-current fixed at 25A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V. It features thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 25 AT. The electrical durability with load is 10,000 operations at 440Vac; In. The frame current rating is 100 AF, and it operates via a toggle (manual). The short circuit breaking rating varies: 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

BDF36040 on Powermatic Associates

BDF36040

Verified stock: 0

Square D by Schneider Electric BDF36040 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 40A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type is a terminal nut kit for fixed busbar connection on both line and load sides, offering a degree of protection of IP40. This MCCB has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. It has 3 poles (3P) and falls under the utilization category A. The dimensions are 137 mm in height, 80 mm in depth, and 81 mm in width. It provides protection settings including over-current fixed at 40A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V. It features thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 40 AT. The electrical durability with load is 10,000 operations at 440Vac; In. The frame current rating is 100 AF, and it operates via a toggle (manual). The short circuit breaking rating varies with voltage: 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Y/347Vac, and 10kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

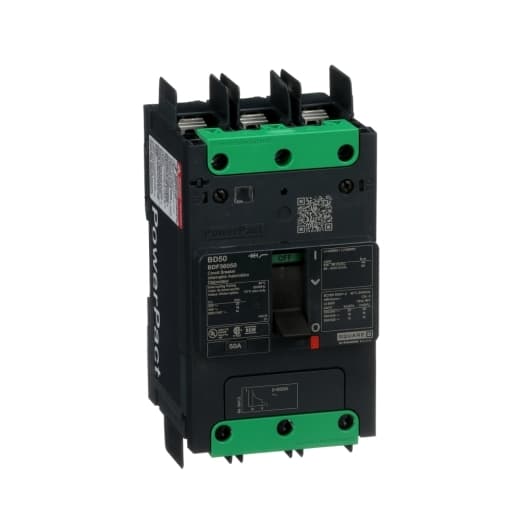

BDF36050 on Powermatic Associates
