Part#:BDF36070

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

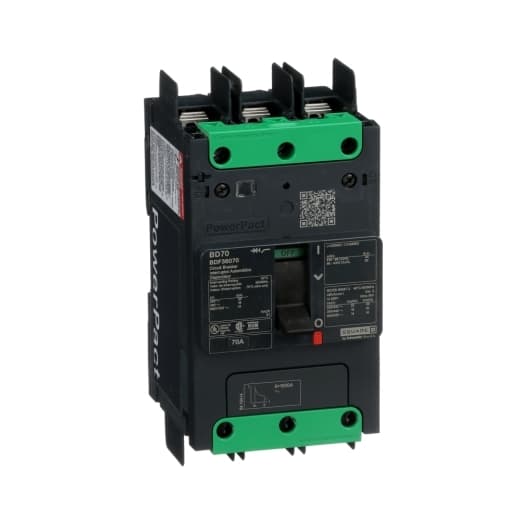

Square D by Schneider Electric BDF36070 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 70A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. This MCCB offers a degree of protection of IP40 and is designed for fixed mounting on DIN rails or as an individual unit mount on plates. It has three poles (3P) and comes with a terminal nut kit for fixed busbar connection on both line and load sides. The MCCB's mechanical durability is rated at 15,000 operations at no load, and it has an electrical durability of 10,000 operations at 440Vac with load. Its protection settings include over-current fixed at 70A, short-circuit hold current fixed at 640A, and short-circuit trip current fixed at 960A. The BDF36070 features thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 70 AT. Its frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies by voltage, with 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Y/347Vac according to UL489 standards, and 10kA at 250Vdc. The trip unit type is thermal-magnetic (fixed) without a display.

Product Details

  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 18 kA 240 V AC 50/60 Hz UL 489 Icu 25 kA 480/277 V AC 50/60 Hz UL 489 Icu 14 kA 480 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 14 kA 250 V DC UL 489 25 kA Icu 18 kA
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • AWG Gauge
    AWG 14...AWG 8 aluminium/copper AWG 6...AWG 3/0 aluminium/copper
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Quantity Per Set
    Set of 1
  • Depth
    3.15 in (80 mm)
  • Net Weight
    2.04 lb(US) (0.924 kg)
  • 9 Mm Pitches
    9
  • Width
    3.19 in (81 mm)
  • Height
    5.39 in (137 mm)
  • Electrical Connection
    Terminal nut ON and OFF end
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Color
    Gray RAL 7016)
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Connection Pitch
    1.06 in (27 mm)
  • Trip Unit Name
    TM-D
  • Continuous Current Rating
    80 %
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex K ed 5.2
  • Trip Unit Technology
    Thermal-magnetic
  • Utilisation Category
    Category A
  • Suitability For Isolation
    Yes conforming to IEC 60947-2
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Breaking Capacity Code
    D
  • Product Name
    PowerPact B
  • Device Application
    Distribution
  • Control Type
    Toggle
  • Protected Poles Description
    3t
  • Device Short Name
    BD 070
  • Number Of Poles
    3P
  • Line Rated Current
    70 A
  • Product Or Component Type
    Circuit breaker
  • Range
    PowerPact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDF36070 on Powermatic Associates is $1,195.00. Order now.
