BCPMC236S Schneider Electric Electronic Components

BCPMC236S on Powermatic Associates
Schneider Electric

Part#:BCPMC236S

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

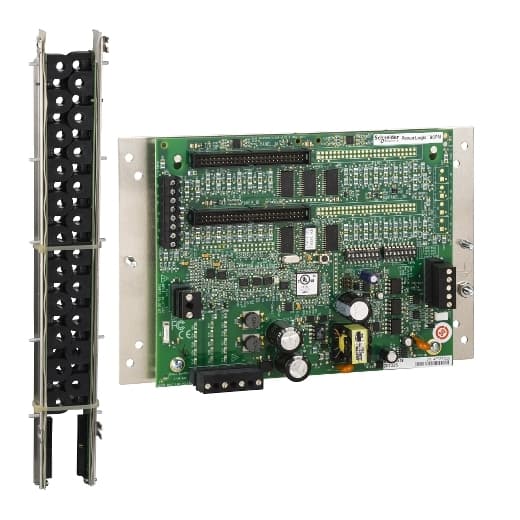

BCPM power monitoring basic - 36 solid core 100 A - 18 mm CT spacing

Product Details

  • Communication Of Data
    High-high current alarm High current alarm Low current alarm Low-low current alarm
  • Measurement Voltage
    90…277 V phase to neutral 150…480 V phase to phase
  • Measurement Accuracy
    Current 2 % 0.25…2 A Current 1 % 2…100 A
  • Network Frequency
    60 Hz 50 Hz
  • Provided Equipment
    36 x current transformer
  • Communication Port Support
    RS485
  • Communication Port Protocol
    Modbus RTU
  • Connection Pitch
    0.71 in (18 mm)
  • Sampling Rate
    256 samples/cycle
  • [Us] Rated Supply Voltage
    90...277 V AC 50/60 Hz +/- 1 %
  • Update Time
    1.8 s
  • Current Transformer Input
    36 solid core CT 100 A
  • Type Of Measurement
    Current
  • Energy Management
    Sub billing and cost allocation
  • Model Type
    Basic
  • Device Application
    Sub billing
  • Product Or Component Type
    Multi-circuit energy meter
  • Power Monitoring
    Basic instrumentation
  • Device Short Name
    BCPMC
  • Product Name
    PowerLogic BCPM
  • Range
    PowerLogic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
