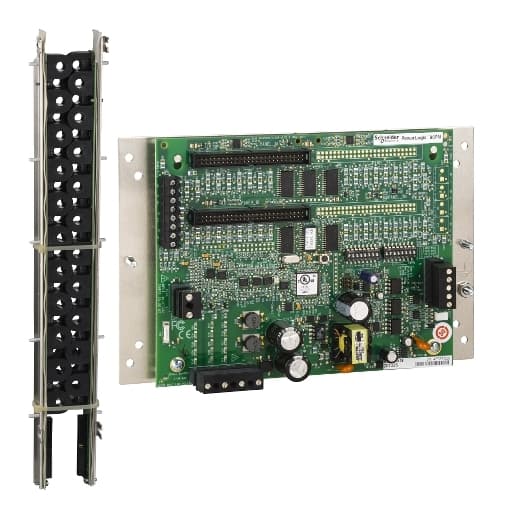

BCPMC084S Schneider Electric Industrial Automation Components

BCPMC084S on Powermatic Associates
Schneider Electric

Part#:BCPMC084S

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric BCPMC084S, part of the BCPM sub-range, is a clip-on (bracket) mounted automation part that utilizes the Modbus RS485 communication protocol. It operates within a network frequency of 50-60 Hz. The sampling rate for this device is 12,800 Hz at 50Hz and 15,360 Hz at 60Hz, based on 256 samples per cycle. It offers measurement accuracy of 0.5% for current and voltage, and 1% for power and energy. The primary measurement function of the BCPMC084S is current.

Product Details

  • Communication Of Data
    High-high current alarm Low-low current alarm High current alarm Low current alarm
  • Measurement Voltage
    90…277 V phase to neutral 150…480 V phase to phase
  • Measurement Accuracy
    Current 2 % 0.25…2 A Current 1 % 2…100 A
  • Provided Equipment
    84 x current transformer 4 x cables
  • Network Frequency
    60 Hz 50 Hz
  • Communication Port Support
    RS485
  • Communication Port Protocol
    Modbus RTU
  • Update Time
    1.8 s
  • Current Transformer Input
    84 solid core CT 100 A
  • Connection Pitch
    0.75 in (19 mm)
  • Sampling Rate
    256 samples/cycle
  • [Us] Rated Supply Voltage
    90...277 V AC 50/60 Hz +/- 1 %
  • Type Of Measurement
    Current
  • Power Monitoring
    Basic instrumentation
  • Device Application
    Sub billing
  • Model Type
    Basic
  • Energy Management
    Sub billing and cost allocation
  • Device Short Name
    BCPMC
  • Product Or Component Type
    Multi-circuit energy meter
  • Product Name
    PowerLogic BCPM
  • Range
    PowerLogic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BCPMC084S Related Documents

Catalog-1631034469386.pdfProduct Datasheet-1631034469411.pdf
