302MCE-SC-15 Red Lion Industrial Automation Components

302MCE-SC-15 on Powermatic Associates
Red Lion

Part#:302MCE-SC-15

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

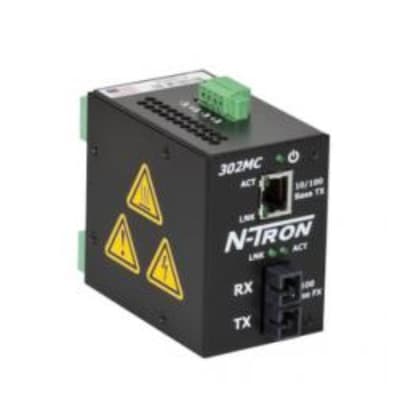

Red Lion 302MCE-SC-15 is a media converter designed to facilitate communication between different media types. It operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems. This unit features a single RJ45 port supporting 10/100BaseTX and a fiber optic SC connector for single-mode fiber with a 15km rated optical fiber length, indicating its capability to convert signals between copper (RJ45) and fiber optic (SC) interfaces. The rated current for the fiber optic connection is 100BaseFX. It is designed for DIN rail mounting and is housed in a metal case, suitable for use in environments with ambient air temperatures ranging from -40 to +70 degrees Celsius. The technology used in this component ensures compatibility with the N-Tron 302MC series.

Product Details

  • Secondary brand
    N-Tron
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc)
  • Primary brand
    Red Lion
  • Main function
    Media converter
  • Sub-range name
    N-Tron 302MC series
  • Material
    Metal case
  • Equivalent to
    302MCESC15
  • Product series / family name
    Converters
  • Design
    Copper / FO Fiber optic converter
  • Compliant with standard(s)
    CE
  • Functions
    Media converter
  • Connection type
    1 x RJ45 port (10/100BaseTX) 1 x Fiber optic SC connector (single-mode; 100BaseFX; 15km rated optical fiber)
  • Mounting mode
    DIN rail
  • Order code / Manufacturer SKU
    302MCE-SC-15
  • Ambient air temperature for operation
    -40...+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
