Name: CD5.241-L1
Brand: Puls

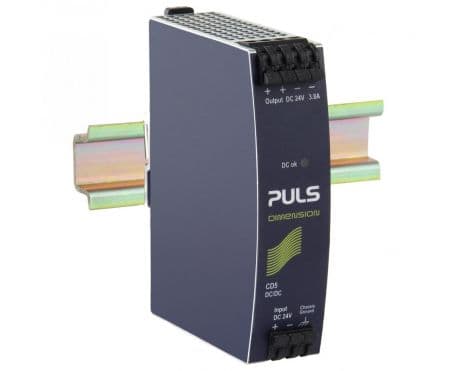

CD5.241

PULS CD5.241 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing and dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 5.5A current at a 24Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 1.6A. It boasts an efficiency of 0.903 at 24Vdc with a 5A input. The CD5.241 includes a 650ms start-up delay and an 800ms rise time under nominal input with a constant full current load and 0mF load capacitance. It offers protection functions such as output overvoltage protection, short-circuit protection with a minimum of 7A and a maximum of 10A continuous current, and allows for series or parallel operation for increased output power or 1+1 redundancy. The unit is capable of handling back-feeding loads up to 30V without malfunctioning, whether powered on or off, and includes reverse polarity protection. Power dissipation/losses are 12.9W under a 24Vdc input with a 24V output load at 5A, and 6.2W at 2.5A. The output stage capacitance is 2200 µF, and the electrical durability ranges from 37,000 to 185,000 hours depending on the operating conditions. It features a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. This PSU/DC/DC-Converter offers a 20% power reserve, is part of the CD-series, and includes ATEX approval for galvanic isolation. Connection is facilitated via screw-clamp connections, with a supply voltage range of 18Vdc-32.4Vdc (24Vdc nominal) and 14.4-18Vdc for up to 60s. The rated current is 6A at 24Vdc from -25 to +45°C and 5A at +45 to +60°C, with a derating to 3W from +60 to +70°C. The rated power is 144W at ambient temperatures below 45°C and 120W below 60°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and a hold time of 6ms at 24Vdc input.

Puls

CD5.243

Verified stock: 0

PULS CD5.243 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32mm. The unit consumes 9.2A current at 12Vdc input to deliver a full 24Vdc output at 4A, with a peak inrush current of 1.3A. It boasts an efficiency of 0.877 under a 24Vdc, 4A input. The dimensions are W32mm x H124mm x D102mm. It includes a 450ms start-up delay and an 80ms rise time under nominal input with a constant full current load. The CD5.243 offers protection against output overvoltage, short circuits, and allows for series or parallel operation to increase output power or achieve 1+1 redundancy for higher system availability. It is capable of handling back-feeding loads up to 30V without malfunctioning, regardless of the power supply's operational state. The unit features reverse polarity protection, with power dissipation losses of 13.5W under a 12Vdc input and 24V output load at 4A. The output stage capacitance is 2200µF, and it has an electrical durability ranging from 33,000 to 206,000 hours depending on the operating conditions. The ripple is maintained at 50mVpp across a 20Hz to 20MHz frequency range. This PSU/DC/DC-Converter includes a 20% power reserve, is part of the CD-series, and comes with ATEX approval and galvanic isolation. Connections are made via screw-clamp connections. The supply voltage ranges from 11Vdc to 16.2Vdc, with a rated current of 4.8A at 24Vdc in temperatures up to 45°C, and lower currents as the temperature increases up to 70°C. The rated power is 116W in ambient temperatures less than 45°C and 96W for temperatures less than 60°C. The output voltage is adjustable between 23-28Vdc, with a 300mV turn-ON overshoot and a hold time of 3ms.

Puls

CD5.121

Verified stock: 0

PULS CD5.121 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a current consumption of 4.6A with a 24Vdc input for a full 12Vdc output, and a peak inrush current of 1.6A. The unit boasts an efficiency of 0.882 under a 12Vdc 8A input and has dimensions of W32mm x H124mm x D102mm. It includes a 420ms start-up delay and a 210ms rise time under nominal input with a constant full current load. The CD5.121 offers protection functions such as output overvoltage protection, short-circuit current protection, and allows for series/parallel operation for increased output power or redundancy. It is resistant to back-feeding loads up to 16V and includes reverse polarity protection. Power dissipation/losses are 12.8W with a 24Vdc input and 12V output load at 8A, and the output stage capacitance is 6500µF. Its electrical durability is rated at 173000 hours at 40°C with a 4A output. The ripple is 75mVpp, and it features screw-clamp connections. The supply voltage ranges from 18Vdc to 32.4Vdc, with a rated current of 9.6A at 12Vdc up to 45°C and 8A at 12Vdc up to 60°C, including a derating above 60°C. The rated power is 116W in ambient temperatures less than 45°C and 96W in temperatures less than 60°C. The output voltage is adjustable between 12Vdc and 15Vdc, with a 500mV turn-ON overshoot and a hold time of 7ms.

Puls

QS10.121

Verified stock: 1

PULS QS10.121 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 15A at 12Vdc and 13.5A at 15Vdc, utilizing spring-clamp connections for connectivity. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values across a wide spectrum. The QS10.121, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, delivering a rated power of 203W at 15V, 180W at 12V, and can momentarily supply up to 270W for 4 seconds. The output voltage is adjustable between 12Vdc and 15Vdc, featuring comprehensive protection functions including overvoltage and overload/short-circuit protection. The unit allows for series or parallel operation to increase output power and is designed to handle back-feeding loads without malfunctioning. Efficiency rates vary with input voltage, achieving up to 0.918 at 230Vac. It exhibits a peak current consumption of 10A, with a start-up delay between 340-800ms and a hold time of 32ms at nominal input conditions. Power dissipation stands at approximately 16.1W to 16.7W under full load conditions, and the electrical durability ranges significantly based on operating conditions, with up to 215000 hours at 25°C and 30A output with 1AC 230Vac input. The output stage capacitance is 7000µF, and ripple is maintained at 50mVpp across a 20Hz to 20MHz range.

Puls

ML15.051

Verified stock: 1

PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 3A at 5Vdc, with screw-clamp connections for secure installation. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) at 47-63Hz, featuring a 59Vac turn-ON voltage and a 54Vac shutdown voltage. Additionally, it accepts DC supply voltages between 88Vdc and 375Vdc. The ML15.051 is housed in a PC / ABS blend, measuring 22.5mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 15W and an adjustable output voltage range of 5Vdc to 5.5Vdc. The unit includes an NTC for input inrush current limiting, achieves efficiencies of 0.772, 0.768, and 0.758 at 230Vac, 120Vac, and 100Vac inputs respectively, and has a current consumption with a peak max inrush of 16A at 120Vac input and 31A at 230Vac input. It features a 630ms start-up delay and a 10ms rise time at nominal input, with power dissipation/losses rated at 4.5W. The electrical durability of the ML15.051 is rated at a minimum of 93,000 hours at +40°C, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω, with an output stage capacitance of 4800µF.

Puls

CD5.242

Verified stock: 0

PULS CD5.242 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 2.75A current at a 48Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 0.8A. It boasts an efficiency of 0.903 at a 24Vdc, 5A input. The dimensions are W32mm x H124mm x D102mm. It includes a 670ms start-up delay and an 80ms rise time under nominal input with a constant full current load. The CD5.242 offers protection against output overvoltage, short circuits, and allows for series or parallel operation for increased output power or redundancy. It is resistant to back-feeding loads up to 30V and includes reverse polarity protection. Power dissipation losses are 12.9W at a 48Vdc input with a 24V output load at 5A. The output stage capacitance is 2200 µF. Its electrical durability ranges from 39,000 to 181,000 hours depending on conditions. The ripple is 50mVpp from 20Hz to 20MHz. This PSU/DC/DC-Converter supports a 20% power reserve and is designed with ATEX approval for galvanic isolation. It features screw-clamp connections and accepts a supply voltage of 39Vdc-57Vdc (48Vdc nominal), with a short-term tolerance down to 30.5-36Vdc for up to 60 seconds. The rated current is 6A at 24Vdc in temperatures up to 45°C, with derating applied up to +70°C. The rated power is 144W in ambient temperatures less than 45°C and 120W below 60°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and it has a hold time of 5.6ms at a 48Vdc input.

Puls

CD5.241-S1

Verified stock: 0

PULS CD5.241-S1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 5.5A current at a 24Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 1.6A. It boasts an efficiency of 0.902 under a 24Vdc, 5A input condition. The dimensions of this power supply unit are W32mm x H124mm x D102mm. It includes a 290ms start-up delay and a 520ms rise time under nominal input with a constant full current load. The CD5.241-S1 is equipped with protection functions including output overvoltage protection, low input voltage signalling via relay contact, and short-circuit current protection. It supports series or parallel operation for increased output power or 1+1 redundancy for higher system availability. The unit is resistant to back-feeding loads up to 30V and includes reverse polarity protection. Power dissipation/losses are 13.3 W under a 24Vdc input with a 24V output load at 5A. The output stage capacitance is 2200 µF, and the electrical durability ranges from 33,000 to 180,000 hours depending on the operating conditions. Ripple is maintained at 50mVpp. This PSU/DC-DC Converter offers a 20% power reserve and features ATEX approval, galvanic isolation, and a DC-OK relay contact output. Connection is facilitated through spring-clamp connections. The supply voltage ranges from 18Vdc to 32.4Vdc, with a rated current of 6A at 24Vdc in temperatures up to 45°C, and a rated power of 144W in ambient temperatures less than 45°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and a hold time of 6ms at 24Vdc input.

Puls

CD5.051

Verified stock: 0

PULS CD5.051 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing with dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 2.6A current at a 24Vdc input for a full 5Vdc output at 10A, with a peak inrush current of 1.6A. It offers an efficiency of 0.815 at 5.1Vdc 10A input and is protected by an IP20 degree of protection. The CD5.051 includes a 420ms start-up delay, a 300ms rise time at nominal input with a constant full current load and 0mF load capacitance, and a 350ms rise time with an 8mF load capacitance. It features output overvoltage protection, overload protection, no-load and short-circuit protection with a short-circuit current of min. 12A to max. 20A, over-temperature protection with automatic restart, and allows for series/parallel operation for increased output power or redundancy. The unit is resistant to back-feeding loads up to 5.6V, includes reverse polarity protection, and has a power dissipation/loss of 11.5W at a 24Vdc input with a 5.1V output load at 10A. The output stage capacitance is 16000 µF, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. It functions as a power supply unit or DC/DC-converter with a 20% power reserve, belonging to the CD-series and designed with galvanic isolation and screw-clamp connections. The supply voltage ranges from 18Vdc to 32.4Vdc (24Vdc nominal) and 14.4-18Vdc for a maximum of 60 seconds. It has a rated current of 12A at 5Vdc from -25 to +45°C and 10A at 5Vdc from +45 to +60°C, with a derating of 1.25W from +60 to +70°C. The rated power is 60W at -25 to +45°C and 50W at -25 to +60°C, with an adjustable output voltage of 5Vdc to 5.5Vdc and a 250mV turn-ON overshoot. The hold time is 10ms at a 24Vdc input.

Puls

CD5.241

Verified stock: 0

PULS CD5.241 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing and dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 5.5A current at a 24Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 1.6A. It boasts an efficiency of 0.903 at 24Vdc with a 5A input. The CD5.241 includes a 650ms start-up delay and an 800ms rise time under nominal input with a constant full current load and 0mF load capacitance. It offers protection functions such as output overvoltage protection, short-circuit protection with a minimum of 7A and a maximum of 10A continuous current, and allows for series or parallel operation for increased output power or 1+1 redundancy. The unit is capable of handling back-feeding loads up to 30V without malfunctioning, whether powered on or off, and includes reverse polarity protection. Power dissipation/losses are 12.9W under a 24Vdc input with a 24V output load at 5A, and 6.2W at 2.5A. The output stage capacitance is 2200 µF, and the electrical durability ranges from 37,000 to 185,000 hours depending on the operating conditions. It features a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. This PSU/DC/DC-Converter offers a 20% power reserve, is part of the CD-series, and includes ATEX approval for galvanic isolation. Connection is facilitated via screw-clamp connections, with a supply voltage range of 18Vdc-32.4Vdc (24Vdc nominal) and 14.4-18Vdc for up to 60s. The rated current is 6A at 24Vdc from -25 to +45°C and 5A at +45 to +60°C, with a derating to 3W from +60 to +70°C. The rated power is 144W at ambient temperatures below 45°C and 120W below 60°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and a hold time of 6ms at 24Vdc input.
