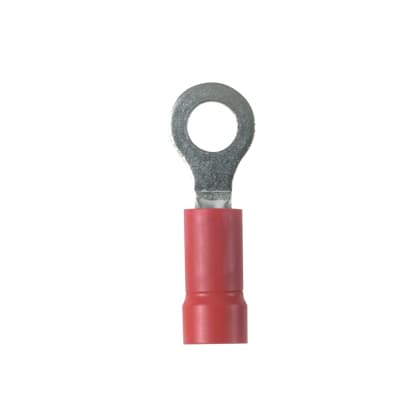

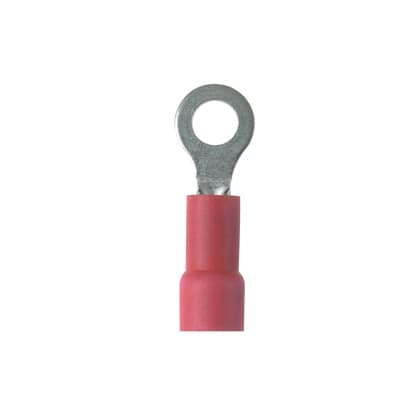

PV18-8R-CY Panduit Electronic Components

Product Details

• For Use With
  CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
• Part Features
  • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength
• Product Type
  Loose Piece Ring Terminal
• Packaging Type
  Bottle
• Tongue Thickness (mm)
  0.8
• Tongue Thickness (In.)
  0.03
• Overall Width (mm)
  7.9
• Tongue Width (In.)
  0.31
• Tongue Width (mm)
  7.9
• Overall Length (In.)
  0.91
• Sub Brand
  Pan-Term®
• Seam Type
  Brazed
• Overall Width (In.)
  0.31
• Overall Length (mm)
  23.1
• Maximum Wire Insulation Diameter (mm)
  3.8
• Maximum Wire Insulation Diameter (In.)
  0.15
• Barrel Type
  Funnel
• Maximum Operating Temperature (°F)
  221
• Maximum Operating Temperature (°C)
  105
• Flammability Rating
  UL94V-0
Maximum Voltage (kV)
0.6
Color Code
Red
Base Material
Copper
Finish/Coating
Tin-Plated
Maximum Voltage (V)
600
Standards Met
UL 486A/B, and CSA 22.2 No.65
Wire Strip Length (mm)
7.9
Wire Strip Length (In.)
5/16
Minimum Metric Conductor Size (mm²)
0.5
Minimum Copper Conductor Size (AWG SOL)
#22
Maximum Metric Conductor Size (mm²)
1.5
Minimum Copper Conductor Size (AWG STR)
#22
Maximum Copper Conductor Size (AWG STR)
#16
Insulation Material
Vinyl
Maximum Copper Conductor Size (AWG SOL)
#16
Stud Size
#8
Note
PV18-8R-CY replaces PV18-8R-C
