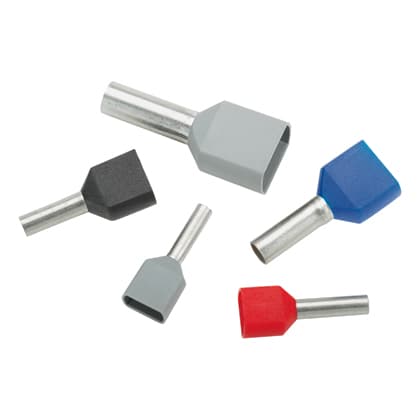

FTD80-10-TL Panduit Electronic Components

Product Details

• Part Features
  Twin Wire Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for twin wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strand
• For Use With
  CT-1160, CT-1170, CT-1090, CT-1002, CT-1003, CT-1123, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
• Color Code
  Blue
• Sub Brand
  Pan-Term®
• Overall Length (mm)
  18.5
• Standards Met
  DIN 46228, CSA C22.2 No. 291-14, UL 486F
• Overall Length (In.)
  0.73
• Packaging Type
  Loose Piece Ferrules
• Finish/Coating
  Tin-Plated
• Product Type
  Twin wire ferrule
• Base Material
  Copper
• Maximum Wire Insulation Diameter (mm)
  3.8
• Minimum Operating Temperature (°C)
  -54
• Maximum Operating Temperature (°F)
  221
• Maximum Wire Insulation Diameter (In.)
  0.15
• Minimum Operating Temperature (°F)
  -60
• Maximum Operating Temperature (°C)
  105
• Inside Diameter (mm)
  2.8
• Pin Length (In.)
  0.39
• Inside Diameter (In.)
  0.11
Cover Material
Polypropylene
Pin Length (mm)
10
Maximum Metric Conductor Size (mm²)
2.5
Wire Strip Length (mm)
14
Wire Strip Length (In.)
9/16
Flammability Rating
UL94-HB
Minimum Metric Conductor Size (mm²)
2.5
Copper Conductor Size (AWG)
14
Ferrule Type
Twin Wire
