8115100 Festo Pneumatic Valves Accessories

8115100 on Powermatic Associates
Festo

Part#:8115100

Alt. Part#:VAVE-K1-7-5YL1-LR

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

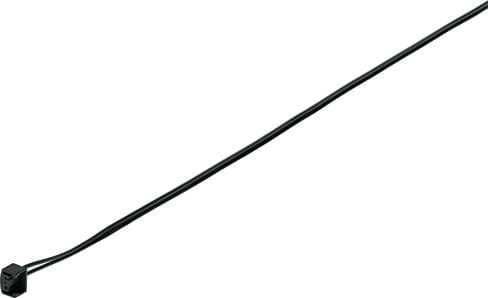

electrical connection box VAVE-K1-7-5YL1-LR Size: 7, Cable attribute: Basic, Polarity protected: for operating voltage, Additional functions: Reduction of holding current, Signal status display: LED

Product Details

  • Cable characteristic
    Basic
  • Signal status display
    LED
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Certification
    RCM compliance mark
  • Type of mounting
    Push-on Engaging
  • Contamination level
    2
  • Bending radius, flexible cable installation
    ≥ 16.5 mm
  • Housing material
    PA-reinforced PC
  • Size
    7
  • Type code
    VAVE
  • Reverse polarity protection
    for operating voltage
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Storage temperature
    -20 °C ... 70 °C
  • Ambient temperature
    0 °C ... 50 °C
  • Cable diameter
    1.1 mm
  • Protective earth connection
    Not available
  • Insulating sheath material
    PVC
  • Overvoltage category
    II
  • Additional functions
    Holding current reduction
  • DC operating voltage range
    12 V ... 26 V
  • Product weight
    3.3 g
  • Cable length
    0.5 m
  • Housing colour
    Black
  • Permissible voltage fluctuations
    +/- 10 %
  • Bending radius, fixed cable installation
    ≥ 11 mm
  • Mounting position
    Any
  • Nominal operating voltage DC
    24 V
  • Degree of protection
    IP40
  • Electrical connection
    2-pin Open end
  • Cable design
    2 x 0.08 mm²
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
