8099101 Festo Pneumatic Fittings

8099101 on Powermatic Associates
Festo

Part#:8099101

Alt. Part#:NPQR-T-G38-Q12

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

push-in fitting NPQR-T-G38-Q12 Size: Standard, Nominal size: 10 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1

Product Details

  • Pack size
    1
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • For use in the food industry
    See declaration of conformity NSF/ANSI 169
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 12 mm
  • Material of tube retaining claw
    High-alloy stainless steel
  • Size
    Standard
  • Type of seal on screwed trunnion
    Sealing ring
  • Operating pressure for entire temperature range
    -0.95 bar ... 16 bar
  • Tolerance for nominal tightening torque
    ± 20%
  • Housing material
    High-alloy stainless steel
  • Certificate issuing authority
    NSF C0556009
  • Type code
    NPQR
  • Design
    Push-pull principle
  • Product weight
    79.8 g
  • Releasing ring material
    High-alloy stainless steel
  • Nominal width
    10 mm
  • Mounting position
    Any
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Ambient temperature
    -20 °C ... 150 °C
  • Note on materials
    RoHS-compliant
  • Material of tubing seal
    FPM
  • Corrosion resistance class (CRC)
    4 - Particularly high corrosion stress
  • Nominal tightening torque
    9 Nm
  • Pneumatic connection 1
    External thread G3/8
  • O-ring material
    FPM

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8099101 Related Documents

8099101 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

153330 on Powermatic Associates

153330

Festo

push-in L-fitting QSML-M3-3 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 0,8 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

5 in stock
132047 on Powermatic Associates

132047

Festo

push-in fitting QS-G1/2-16-20 male thread with external hexagon. Size: Standard, Nominal size: 13 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 20

20 in stock
572311 on Powermatic Associates

572311

Festo

push-in fitting QBM-10-32-UNF-1/8-I-U Size: Mini, Nominal size: 0,094 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

3 in stock
572319 on Powermatic Associates

572319

Festo

push-in fitting QB-1/8-5/16-I-U Size: Standard, Nominal size: 0,189 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

7 in stock
533280 on Powermatic Associates

533280

Festo

push-in fitting QB-3/8-5/16-U male thread with external hexagon. Size: Standard, Nominal size: 0,252 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

6 in stock
533285 on Powermatic Associates

533285

Festo

push-in L-fitting QBML-10-32-UNF-1/8-U 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 0,098 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

4 in stock

Manufacturer warranty

8099101 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 8099101 with other Pneumatic Fittings products

Pack size

Operating medium

For use in the food indus...

Pneumatic connection 2

Material of tube retainin...

Size

Type of seal on screwed t...

Operating pressure for en...

Tolerance for nominal tig...

Housing material

Selected product

8099101
Backordered
8099101
Festo

push-in fitting NPQR-T-G38-Q12 Size: Standard, Nominal size: 10 mm, Type of seal on screw-in stud: S...

Pack size1

Operating mediumCompressed air as per ISO 85...

For use in the food industrySee declaration of conformit...

Pneumatic connection 2for pneumatic tubing outside...

Material of tube retaining clawHigh-alloy stainless steel

SizeStandard

Type of seal on screwed trunnionSealing ring

Operating pressure for entire temperature range-0.95 bar ... 16 bar

Tolerance for nominal tightening torque± 20%

Housing materialHigh-alloy stainless steel

8085684
1 in stock
8085684
Festo

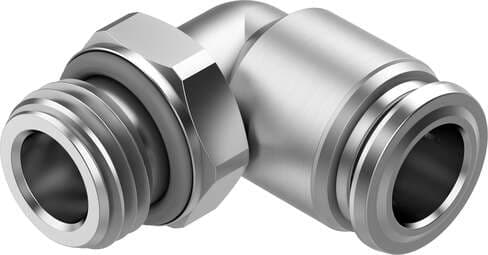

push-in fitting NPQR-L-G14-Q8 Size: Standard, Nominal size: 6 mm, Type of seal on screw-in stud: Sea...

Pack size1

Operating mediumCompressed air as per ISO 85...

For use in the food industry-

Pneumatic connection 2-

Material of tube retaining claw-

SizeStandard

Type of seal on screwed trunnionSealing ring

Operating pressure for entire temperature range-0.95 bar ... 16 bar

Tolerance for nominal tightening torque-

Housing material-

183741
6 in stock
183741
Festo

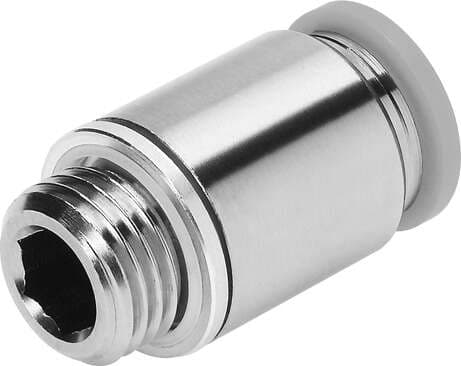

push-in fitting QS-1/8-1/4-I-U-M male thread with internal hexagon socket. Size: Standard, Nominal s...
