8085684 Festo Pneumatic Fittings

8085684 on Powermatic Associates
Festo

Part#:8085684

Alt. Part#:NPQR-L-G14-Q8

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 1, 2025

Product description

push-in fitting NPQR-L-G14-Q8 Size: Standard, Nominal size: 6 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1

Product Details

  • Mounting position
    Any
  • Type of seal on screwed trunnion
    Sealing ring
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Tolerance for nominal tightening torque
    ± 20%
  • Housing material
    High-alloy stainless steel
  • Releasing ring material
    High-alloy stainless steel
  • Size
    Standard
  • Certificate issuing authority
    NSF C0556009
  • Design
    Push-pull principle
  • Ambient temperature
    -20 °C ... 150 °C
  • Product weight
    24.4 g
  • O-ring material
    FPM
  • Nominal width
    6 mm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Pneumatic connection 1
    External thread G1/4
  • Material of tube retaining claw
    High-alloy stainless steel
  • Type code
    NPQR
  • Operating pressure for entire temperature range
    -0.95 bar ... 16 bar
  • Nominal tightening torque
    7.5 Nm
  • Note on materials
    RoHS-compliant
  • Pack size
    1
  • Corrosion resistance class (CRC)
    4 - Particularly high corrosion stress
  • For use in the food industry
    See declaration of conformity NSF/ANSI 169
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 8 mm
  • Material of tubing seal
    FPM

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8085684 Related Documents

8085684 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

2030 on Powermatic Associates

2030

Festo

quick connector CK-1/4-PK-6 Male thread with sealing ring, metal version. Nominal size: 4,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accordanc

10 in stock
564801 on Powermatic Associates

564801

Festo

push-in connector QB-5/16T-1/4-U reducing. Size: Standard, Nominal size: 0,197 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

8 in stock
572311 on Powermatic Associates

572311

Festo

push-in fitting QBM-10-32-UNF-1/8-I-U Size: Mini, Nominal size: 0,094 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

3 in stock
572319 on Powermatic Associates

572319

Festo

push-in fitting QB-1/8-5/16-I-U Size: Standard, Nominal size: 0,189 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

7 in stock
533285 on Powermatic Associates

533285

Festo

push-in L-fitting QBML-10-32-UNF-1/8-U 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 0,098 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

4 in stock
533280 on Powermatic Associates

533280

Festo

push-in fitting QB-3/8-5/16-U male thread with external hexagon. Size: Standard, Nominal size: 0,252 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

6 in stock

Manufacturer warranty

8085684 Festo

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

1

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 8085684 with other Pneumatic Fittings products

Mounting position

Type of seal on screwed t...

Information on operating ...

Tolerance for nominal tig...

Housing material

Releasing ring material

Size

Certificate issuing autho...

Design

Ambient temperature

Selected product

8085684
1 in stock
8085684
Festo

push-in fitting NPQR-L-G14-Q8 Size: Standard, Nominal size: 6 mm, Type of seal on screw-in stud: Sea...

Mounting positionAny

Type of seal on screwed trunnionSealing ring

Information on operating and pilot mediaOperation with oil lubricati...

Tolerance for nominal tightening torque± 20%

Housing materialHigh-alloy stainless steel

Releasing ring materialHigh-alloy stainless steel

SizeStandard

Certificate issuing authorityNSF C0556009

DesignPush-pull principle

Ambient temperature-20 °C ... 150 °C

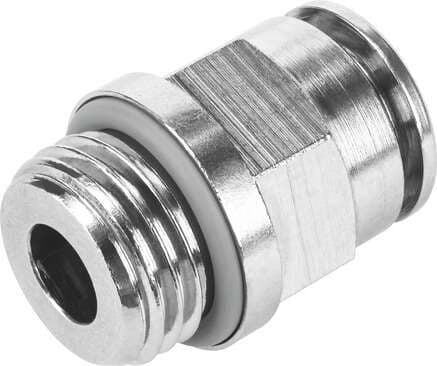

578342
