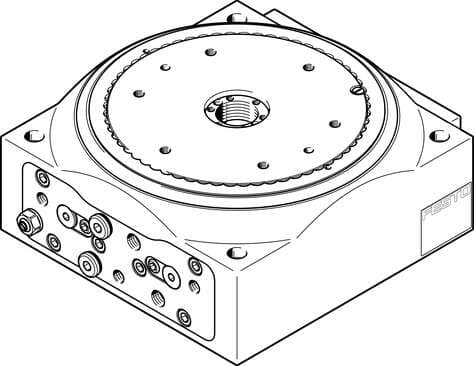

555450 Festo Pneumatic Actuators

Product Details

• Size
  140
• Repetition accuracy of swivel angle
  ≤ 0.03 deg
• Mounting position
  Any
• Ambient temperature
  5 °C ... 60 °C
• Max. tangential torque static
  200 Nm
• Plate material
  Steel, galvanized
• Axial eccentricity of plate
  ≤ 0.02 mm
• Cushioning
  Pneumatic shock absorber, hard characteristic curve, adjustable
• Symbol
  00992251
• Operating pressure
  4 bar ... 8 bar
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Max. pull-out torque static
  300 Nm
• Type of mounting
  Via through-hole and centering sleeve
• Seals material
  NBR TPE-U(PU)
• Plate concentricity
  ≤ 0.02 mm
• Position sensing
  For inductive proximity sensors
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Product weight
  10000 g
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Design
  Gear coupling Positively driven motion sequence
Spacing
3
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. axial force static
4000 N
Theoretical torque at 6 bar
18.1 Nm
Housing material
Wrought aluminum alloy
Parallelism of plate
≤ 0.04 mm
Type code
DHTG
Mode of operation
Double-acting
Noise level
≤ 70 dB(A)
Max. radial force static
6000 N
Pneumatic connection
Internal thread G1/8
Stops material
Steel, galvanized
Cover material
Wrought aluminum alloy
