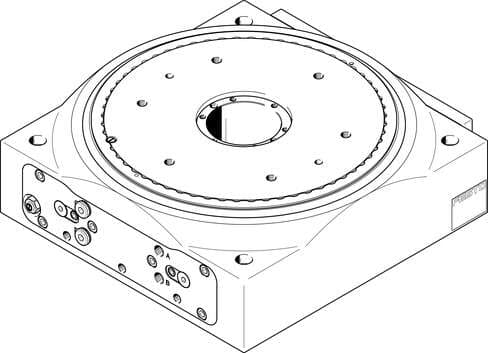

555451 Festo Pneumatic Actuators

Product Details

• Type code
  DHTG
• Spacing
  3
• Plate concentricity
  ≤ 0.02 mm
• Design
  Gear coupling Positively driven motion sequence
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature
  5 °C ... 60 °C
• Parallelism of plate
  ≤ 0.04 mm
• Mounting position
  Any
• Mode of operation
  Double-acting
• Max. axial force static
  5000 N
• Stops material
  Steel, galvanized
• Axial eccentricity of plate
  ≤ 0.02 mm
• Cushioning
  Pneumatic shock absorber, hard characteristic curve, adjustable
• Position sensing
  For inductive proximity sensors
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Noise level
  ≤ 70 dB(A)
• Theoretical torque at 6 bar
  58.9 Nm
• Type of mounting
  Via through-hole and centering sleeve
• Size
  220
• Repetition accuracy of swivel angle
  ≤ 0.03 deg
Symbol
00992251
Operating pressure
4 bar ... 8 bar
Max. tangential torque static
500 Nm
Product weight
24000 g
Note on materials
Free of copper and PTFE RoHS-compliant
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Max. pull-out torque static
500 Nm
Plate material
Steel, galvanized
Cover material
Wrought aluminum alloy
Max. radial force static
8000 N
Pneumatic connection
Internal thread G1/8
Housing material
Wrought aluminum alloy
Seals material
NBR TPE-U(PU)
