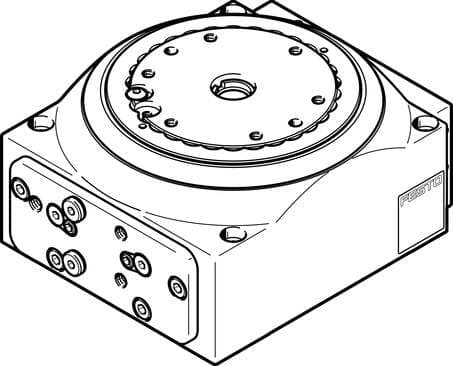

555448 Festo Pneumatic Actuators

Product Details

• Spacing
  3
• Axial eccentricity of plate
  ≤ 0.02 mm
• Repetition accuracy of swivel angle
  ≤ 0.03 deg
• Symbol
  00992251
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Max. axial force static
  1000 N
• Max. radial force static
  2000 N
• Stops material
  Steel, galvanized
• Size
  65
• Plate concentricity
  ≤ 0.02 mm
• Design
  Gear coupling Positively driven motion sequence
• Mounting position
  Any
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Max. tangential torque static
  100 Nm
• Pneumatic connection
  Internal thread M5
• Cover material
  Wrought aluminum alloy
• Type code
  DHTG
• Mode of operation
  Double-acting
• Position sensing
  For inductive proximity sensors
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
Max. pull-out torque static
100 Nm
Type of mounting
Via through-hole and centering sleeve
Plate material
Steel, galvanized
Parallelism of plate
≤ 0.04 mm
Cushioning
Pneumatic shock absorber, hard characteristic curve, adjustable
Operating pressure
4 bar ... 8 bar
Ambient temperature
5 °C ... 60 °C
Product weight
1900 g
Seals material
NBR TPE-U(PU)
Noise level
≤ 70 dB(A)
Theoretical torque at 6 bar
2.1 Nm
Note on materials
Free of copper and PTFE RoHS-compliant
Housing material
Wrought aluminum alloy
