547217 Festo Directional Control Valves

Product Details

• Pilot pressure MPa
  0.3 MPa ... 1 MPa
• Operating voltage
  230V AC
• Exhaust air function
  With flow control option
• Manual override
  Non-detenting
• Symbol
  00991059
• Lap
  Overlap
• Valve size
  18 mm
• Design
  Piston gate valve
• Type code
  VSVA
• Pilot air supply port
  Internal
• Pilot pressure
  3 bar ... 10 bar
• Duty cycle
  100%
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Noise level
  85 dB(A)
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Type of mounting
  On sub-base
• Pneumatic connection 4
  Sub-base, size 18 mm as per ISO 15407-1
• Housing material
  Die-cast aluminum
• Seals material
  HNBR NBR
• Actuation type
  Electrical
Nominal width
5 mm
Conforms to standard
ISO 15407-1 VDMA 24563
Signal status display
LED
Optimized flow rate of pneumatic valve pneumatically concatenated flow
550 l/min
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Operating pressure
2 bar ... 10 bar
Standard nominal flow rate
550 l/min
Degree of protection
IP65 NEMA 4
Mounting position
Any
Flow direction
Non-reversible
Flow rate of pneumatic valve on individual sub-base
550 l/min
CE marking (see declaration of conformity)
As per EU low voltage directive
Temperature of medium
-5 °C ... 50 °C
Product weight
174 g
Auxiliary pilot air port 14
Sub-base, size 18 mm as per ISO 15407-1
Pneumatic connection 2
Sub-base, size 18 mm as per ISO 15407-1
Note on materials
RoHS-compliant
Valve function
5/2, bistable, dominant
Pneumatic working port
Sub-base, size 18 mm as per ISO 15407-1 G1/8
Sealing principle
Soft
Type of control
Pilot-controlled
Flow rate of pneumatic valve
750 l/min
Changeover time
15 ms
Permissible voltage fluctuations
-15 % / +10 %
Corrosion resistance class (CRC)
0 - No corrosion stress
Ambient temperature
-5 °C ... 50 °C

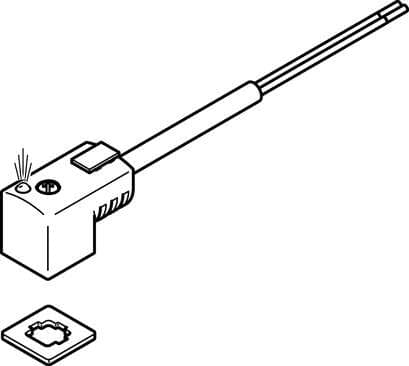

Electrical connection
Form C as per DIN EN 175301-803
Pilot exhaust air port 82/84
Not ducted as per standard Ducted
Pneumatic connection 3
Sub-base, size 18 mm as per ISO 15407-1
Pilot interface
as per ISO 15218
Coil characteristics
230 V AC: 50/60 Hz, initial power 2.9 VA, holding power 2.1 VA
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Relative air humidity
0 - 90 %
Max. tightening torque for valve mounting
1 Nm
Auxiliary pilot air port 12
Sub-base, size 18 mm as per ISO 15407-1
Pneumatic connection 1
Sub-base, size 18 mm as per ISO 15407-1
Pneumatic connection 5
Sub-base, size 18 mm as per ISO 15407-1
Material of screws
Steel Galvanized
