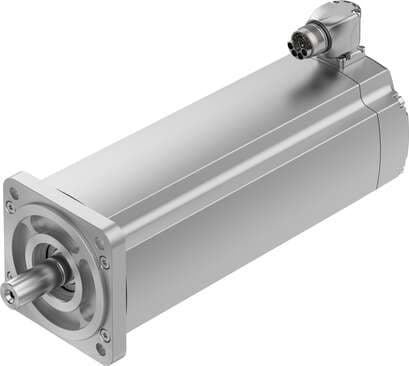

5255448 Festo Servo Motors
Part#:5255448
Manufacturer:Festo
Alt. Part#:EMMT-AS-80-L-HS-RMB
Product Lifecycle:Active
Get a quick Quote!
servo motor EMMT-AS-80-L-HS-RMB Ambient temperature: -15 - 40 °C, Note on ambient temperature: up to 80°C with derating -1.5%/°C, Max. installation height: 4000 m, Note on max. installation height: As of 1,000 m, only with derating of -1.0% per 100 m, Sto
About the manufacturer: Festo is one of the manufacturers that offers Servo Motors that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 5255448 Festo price in the box on the right side or send a quick quote.
Product Details
- Electrical connection 1, connection type Hybrid plug
- Mounting position Any
- Contamination level 2
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Certificate issuing authority UL E342973
- Max. brake no-load speed 10000 1/min
- Max. mechanical speed 14000 1/min
- Brake closing time ≤ 30 ms
- Cross inductivity Lq (phase) 9.45 mH
- Thermal resistance 0.68 K/W
- Nominal rotary speed 3000 1/min
- Motor nominal current 3.5 A
- Rating class according to EN 60034-1 S1
- Thermal class according to EN 60034-1 F
- Peak torque 9.9 Nm
- Electrical connection 1, connection technology M23x1
- Detent torque < 1.0% of peak torque
- Note on degree of protection IP40 for motor shaft without rotary shaft seal IP67 for motor housing, incl. connection technology
- Balancing quality G 2.5
- Electrical connection 1, number of pins/wires 15
- Brake current consumption 0.63 A
- Number of pole pairs 5
- Brake separation time ≤ 45 ms
- Rotor position encoder system accuracy angle measurement -120 arcsec ... 120 arcsec
- Type code EMMT-AS
- Max. rotational speed 7100 1/min
- Brake power consumption 15 W
- Rotor position sensor resolution 19 bit
- Voltage constant, phase-to-phase 56 mVmin
- Storage temperature -20 °C ... 70 °C
- Certification RCM compliance mark c UL us - Recognized (OL)
- Nominal torque 2.9 Nm
- MTTF, subcomponent 190 years, rotor position sensor
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Electrical connection for input 1, connection pattern 00995913
- Rotor position sensor for manufacturer designation EQI 1131
- Measuring flange 250 x 250 x 15 mm, steel
- Brake airflow 0.45 A
- Rotor position encoder for DC operating voltage 5 V
- Brake coil resistance 38.4 Ohm
- Brake stopping current 0.45 A
- Electric time constant 7 ms
- Standstill torque constant 0.93 Nm/A
- Rotor position encoder for positional values per revolution 524288
- Rotor position sensor measuring principle Inductive
- Brake DC operating voltage 24 V
- Motor nominal power 910 W
- Type of winding switch Star inside
- CE marking (see declaration of conformity) As per EU EMC directive As per EU RoHS directive
- Ambient temperature -15 °C ... 40 °C
- Total output inertia moment 2.72 kgcm²
- MTTFd, subcomponent 380 years, rotor position sensor
- Conforms to standard IEC 60034
- Concentricity, coaxiality, axial runout according to DIN SPEC 42955 N
- Information on max. installation height with 1,000 m and longer only with derating of -1.0% per 100 m
- Motor type as per EN 60034-7 IM B5 IM V3
- Max. brake friction work 12000 J
- Rotor position encoder for DC operating voltage range 3.6 V ... 14 V
- Rotor position encoder for absolutely detectable revolutions 4096
- Rotor position sensor interface EnDat® 22
- Rotor position sensor Absolute encoder, multi-turn
- Continuous stall current 4.3 A
- Nominal operating voltage DC 565 V
- Winding inductance phase-phase 12.6 mH
- Phase-phase winding resistance 2.69 Ohm
- Corrosion resistance class (CRC) 0 - No corrosion stress
- Degree of protection IP40
- Brake mass moment of inertia 0.459 kgcm²
- Permissible axial shaft load 120 N
- Product weight 4120 g
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Note on ambient temperature Up to 80 °C with derating of -1.5% per degree Celsius
- Max. winding temperature 155 °C
- Max. installation height 4000 m
- Brake coil inductivity 900 mH
- Storage lifetime, under nominal conditions 20000 h
- DC brake response delay ≤ 4 ms
- Winding longitudinal inductivity Ld (phase) 7.5 mH
- Thermal time constant 48 min
- Temperature monitoring Digital motor temperature transmission via EnDat® 2.2
- Motor constants 0.82 Nm/A
- Peak current 17.5 A
- Relative air humidity 0 - 90 %
- Brake holding torque 7 Nm
- Stall torque 3.5 Nm
- Switching cycles, holding brake 10 million idle actuations (without friction work!)
- Permissible radial shaft load 620 N
- Interface code, motor out 80P
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
