3659493 Festo Pneumatic Actuators

3659493 on Powermatic Associates
Festo

Part#:3659493

Alt. Part#:DSBC-50-30-D3-PPSA-N3

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

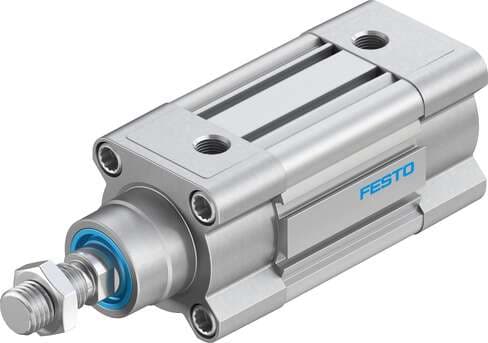

standards-based cylinder DSBC-50-30-D3-PPSA-N3 with self-adjusting pneumatic end position cushioning Stroke: 30 mm, Piston diameter: 50 mm, Piston rod thread: M16x1,5, Cushioning: PPS: Self-adjusting pneumatic end-position cushioning, Assembly position: A

Product Details

  • Piston seal material
    TPE-U(PU)
  • Material of piston
    Wrought aluminum alloy
  • Piston rod thread
    M16x1.5
  • Piston rod end
    External thread
  • Operating pressure
    0.04 MPa ... 1.2 MPa
  • Theoretical force at 6 bar, retracting
    990 N
  • Pneumatic connection
    G1/4
  • Buffer seal material
    TPE-U(PU)
  • Piston diameter
    50 mm
  • Design
    Piston Profile barrel
  • Mode of operation
    Double-acting
  • Moving mass at 0 mm stroke
    365 g
  • Type of mounting
    Optionally: With accessories
  • Material of cylinder barrel
    Wrought aluminum alloy, smooth-anodized
  • Flange screws material
    Steel, galvanized
  • Type code
    DSBC
  • Conforms to standard
    ISO 15552
  • Variants
    Piston rod at one end
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    -20 °C ... 80 °C
  • Theoretical force at 6 bar, advancing
    1178 N
  • Additional moving mass per 10 mm stroke
    25 g
  • Note on materials
    RoHS-compliant
  • Cushion piston material
    POM
  • Material of bearing
    POM
  • Cushioning
    Self-adjusting pneumatic end-position cushioning
  • Position sensing
    For proximity sensor
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Cushioning length
    22 mm
  • Basic weight with 0 mm stroke
    1190 g
  • Piston rod material
    High-alloy steel
  • Piston rod wiper seal material
    TPE-U(PU)
  • Nut material
    Steel, galvanized
  • Stroke
    30 mm
  • Mounting position
    Any
  • Symbol
    00992970
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Impact energy in the end positions
    1 J
  • Additional weight per 10 mm stroke
    56 g
  • Cover material
    Die-cast aluminum, coated

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3659493 Related Documents

3659493 DataSheet.pdf

Similar products from: Festo Pneumatic Actuators
