3326 Festo Pneumatic Fittings

3326 on Powermatic Associates
Festo

Part#:3326

Alt. Part#:KS3-CK-4

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

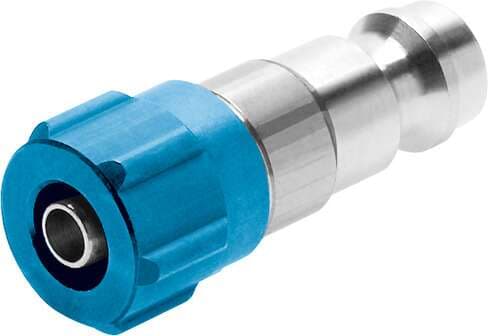

quick coupling plug KS3-CK-4 For self-closing quick coupling connectors. Nominal size: 2,9 mm, Operating pressure complete temperature range: -0,95 - 12 bar, Standard nominal flow rate: 158 l/min, Operating medium: Compressed air in accordance with ISO857

Product Details

  • Standard nominal flow rate
    158 l/min
  • Ambient temperature
    -10 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Type code
    KS3
  • Product weight
    16 g
  • Operating pressure for entire temperature range
    -0.95 bar ... 12 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Pneumatic connection 1
    CK-4
  • Nominal width
    2.9 mm
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3326 Related Documents

3326 DataSheet.pdf
