2280 Festo Pneumatic Components

2280 on Powermatic Associates
Festo

Part#:2280

Alt. Part#:SE-3/4

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

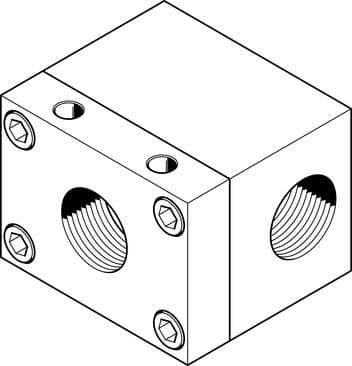

quick exhaust valve SE-3/4 Valve function: Quick exhaust, Pneumatic connection, port 1: G3/4, Pneumatic connection, port 2: G3/4, Mounting type: with through hole, Standard nominal flow rate, exhaust: 7500 l/min

Product Details

  • Pneumatic connection 2
    G3/4
  • Pneumatic connection 1
    G3/4
  • Standard nominal flow rate pressurization 6->5 bar
    2500 l/min
  • Nominal width
    19 mm
  • Symbol
    00991459
  • Valve function
    Quick exhaust
  • Operating pressure
    0.5 bar ... 10 bar
  • Ambient temperature
    -20 °C ... 75 °C
  • Product weight
    710 g
  • Pneumatic connection 3
    G3/4
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Type code
    SE
  • Standard nominal flow rate exhaust air 6->5 bar
    7500 l/min
  • Mounting position
    Any
  • Note on materials
    RoHS-compliant
  • Type of mounting
    With through-hole
  • Housing material
    Wrought aluminum alloy Anodized
  • Temperature of medium
    -20 °C ... 75 °C
  • Seals material
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

2280 Related Documents

2280 DataSheet.pdf
