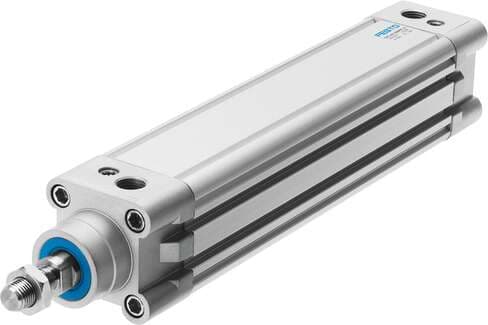

1922627 Festo Pneumatic Actuators

Product Details

• Piston diameter
  40 mm
• Mounting position
  Any
• Operating pressure
  0.06 MPa ... 1.2 MPa
• Piston rod thread
  M12x1.25
• Conforms to standard
  ISO 15552
• Symbol
  00991235
• Position sensing
  For proximity sensor
• Ambient temperature
  -20 °C ... 80 °C
• Additional weight per 10 mm stroke
  45 g
• Type of mounting
  With internal thread With accessories
• Note on materials
  RoHS-compliant
• Material of cylinder barrel
  Wrought aluminum alloy Smooth anodized
• Stroke
  150 mm
• Type code
  DNC
• Piston rod end
  External thread
• Mode of operation
  Double-acting
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Cushioning length
  20 mm
• Theoretical force at 6 bar, retracting
  633 N
• Cover material
  Die-cast aluminum Coated
Maritime classification
See certificate
Cushioning
Pneumatic cushioning, adjustable at both ends
Design
Piston Profile barrel
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Theoretical force at 6 bar, advancing
754 N
Basic weight with 0 mm stroke
800 g
Piston rod material
High-alloy steel
Moving mass at 0 mm stroke
307 g
Seals material
TPE-U(PU)
Impact energy in the end positions
0.2 J
Pneumatic connection
G1/4
Variants
Piston rod at one end
Additional moving mass per 10 mm stroke
16 g
