1911916 Festo Pneumatic Components

1911916 on Powermatic Associates
Festo

Part#:1911916

Alt. Part#:CAMC-F-PN

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

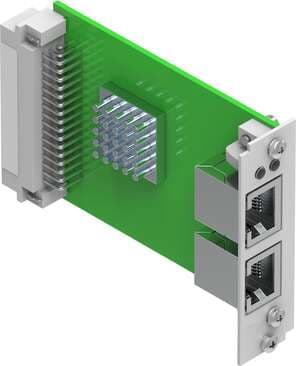

interface CAMC-F-PN Plug-in card for fieldbus interface. Dimensions W x L x H: 19 mm x 90 mm x 65 mm, CE mark (see declaration of conformity): to EU directive for EMC, Storage temperature: -25 - 70 °C, Relative air humidity: (* 5 - 95 %, * non-condensing)

Product Details

  • Storage temperature
    -25 °C ... 70 °C
  • Product weight
    75 g
  • Mounting position
    Any
  • Communication profile
    FHPP
  • Configuration support
    GSDML
  • Dimensions W x L x H
    19 mm x 90 mm x 65 mm
  • Degree of protection
    IP20 In mounted state
  • Type of mounting
    Plug-in module for CMMP-AS...-M3
  • Baud rate
    10/100 Mbit/s (full/half)
  • Topologies
    Star Line
  • LED indicators
    Bus error System fault
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Ambient temperature
    0 °C ... 50 °C
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Protocol
    PROFINET
  • IP address allocation
    FCT DCP
  • Parameterization
    FCT
  • Additional functions
    Conformance class B SNMP
  • Relative air humidity
    5 - 95 % Non-condensing
  • Type code
    CAMC
  • Minimum cycle time
    1 ms
  • Media redundancy
    MRP
  • Fieldbus interface
    2x RJ45 socket

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
