188059 Festo Pneumatic Actuators

188059 on Powermatic Associates
Festo

Part#:188059

Alt. Part#:AEVC-6-10-P

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

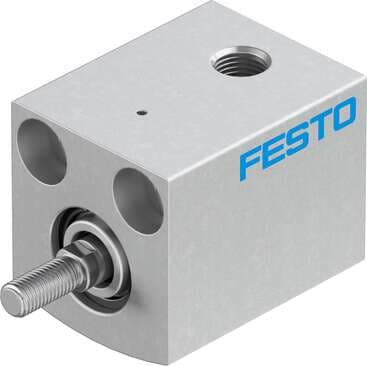

short-stroke cylinder AEVC-6-10-P No facility for sensing Stroke: 10 mm, Piston diameter: 6 mm, Spring return force, retracted: 3 N, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

Product Details

  • Type code
    AEVC
  • Mounting position
    Any
  • Theoretical force at 6 bar, advancing
    11 N
  • Pneumatic connection
    M3
  • Seals material
    NBR TPE-U(PU)
  • Piston diameter
    6 mm
  • Design
    Piston Piston rod
  • Operating pressure
    2.5 bar ... 8 bar
  • Ambient temperature
    -20 °C ... 80 °C
  • Housing material
    Wrought aluminum alloy Anodized
  • Spring resetting force with piston rod in retracted position
    3 N
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Position sensing
    None
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Product weight
    11 g
  • Cover material
    Wrought aluminum alloy Anodized
  • Stroke
    10 mm
  • Mode of operation
    Single-acting Pushing
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Moving mass
    1.4 g
  • Type of mounting
    Optionally: With accessories
  • Symbol
    00991730
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Note on materials
    Free of copper and PTFE
  • Piston rod material
    High-alloy steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
