188024 Festo Electrical Connectors

188024 on Powermatic Associates
Festo

Part#:188024

Alt. Part#:MSSD-EB-M12-MONO

Manufacturer:Festo

Category:Electrical Connectors

Product Lifecycle:Active

Product description

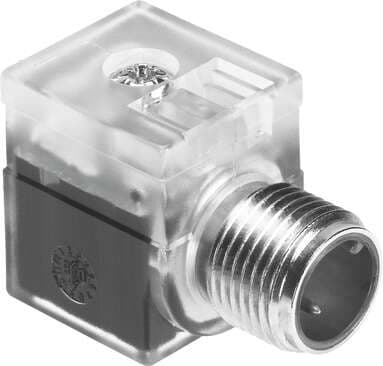

plug socket MSSD-EB-M12-MONO for valves MEBH, MEOBH, MN2H, IMN2H. Based on the standard: (* EN 175301-803, * EN 61076-2-101, * EN 61984), Switching position indicator: LED, Mounting type: On solenoid valve with M2.5 central screw, Electrical connection 1:

Product Details

  • Based on norm
    EN 175301-803 EN 61984
  • Electrical connection 2
    Straight plug, M12x1, 2-pin, A-coded
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Switching position indication
    LED
  • DC operating voltage range
    12 V ... 24 V
  • Current rating
    0.12 A
  • Surge resistance
    2.5 kV
  • Type of mounting
    On air solenoid valve with M2.5 central screw
  • Electrical connection 1
    Socket, as per EN 175301-803, form C
  • Contamination level
    3
  • Operating voltage range AC
    12 V ... 24 V
  • Ambient temperature
    -10 °C ... 50 °C
  • Type code
    MSSD-EB
  • Degree of protection
    IP65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
