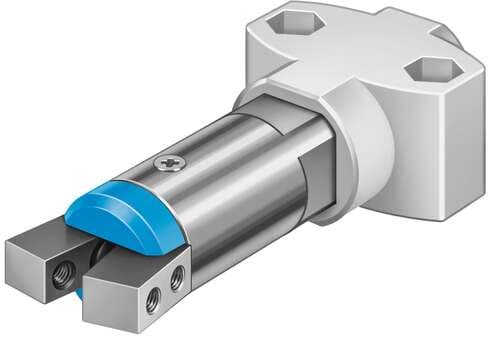

185699 Festo Grippers

Product Details

• Type code
  HGWM
• Operating pressure
  2 bar ... 8 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:-:-]
• Stroke compensation spring force
  10 N ... 23 N
• Maximum torque on gripper jaw, Mz static
  0.4 Nm
• Type of mounting
  With internal thread
• Cover cap material
  POM
• Size
  12
• Max. opening angle
  18.5 deg
• Position sensing
  None
• Max. operating frequency of pneumatic gripper
  4 Hz
• Ambient temperature
  5 °C ... 60 °C
• Maximum force on gripper jaw Fz, static
  20 N
• Product weight
  75 g
• Gripper jaw material
  High-alloy steel
• Max. gripper jaw backlash Sz
  0.03 mm
• Number of gripper jaws
  2
• Gripper function
  Angle
• Min. opening time at 6 bar
  3.7 ms
• Spring return torque
  0.013 Nm
Maximum torque on gripper jaw, Mx static
0.4 Nm
Pneumatic connection
M3
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Design
Inclined plane
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Total gripping torque at 6 bar, closing
64 Ncm
Housing material
High-alloy stainless steel
Max. gripper jaw angular play ax, ay
0.5 deg
Mode of operation
Single-acting Open
Symbol
00991897
Min. closing time at 6 bar
1.8 ms
Maximum torque on gripper jaw, My static
0.4 Nm
Note on materials
Free of copper and PTFE
