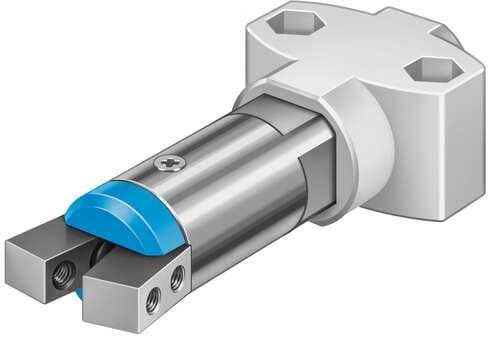

185693 Festo Grippers

Product Details

• Mode of operation
  Single-acting Open
• Operating pressure
  2 bar ... 8 bar
• Total gripping torque at 6 bar, closing
  22 Ncm
• Maximum torque on gripper jaw, My static
  0.2 Nm
• Type of mounting
  With internal thread
• Gripper jaw material
  High-alloy steel
• Max. gripper jaw backlash Sz
  0.03 mm
• Type code
  HGWM
• Design
  Inclined plane
• Min. closing time at 6 bar
  1.2 ms
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mx static
  0.2 Nm
• Cover cap material
  POM
• Max. opening angle
  17 deg
• Number of gripper jaws
  2
• Max. operating frequency of pneumatic gripper
  4 Hz
• Symbol
  00991897
• Stroke compensation spring force
  4 N ... 6 N
• Pneumatic connection
  M3
• Max. gripper jaw angular play ax, ay
  0.5 deg
Position sensing
None
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Spring return torque
0.005 Nm
Maximum torque on gripper jaw, Mz static
0.2 Nm
Housing material
High-alloy stainless steel
Size
8
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Gripper function
Angle
Min. opening time at 6 bar
2.7 ms
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Maximum force on gripper jaw Fz, static
7 N
Product weight
23 g
Note on materials
Free of copper and PTFE

Related documents 185693 Specs
