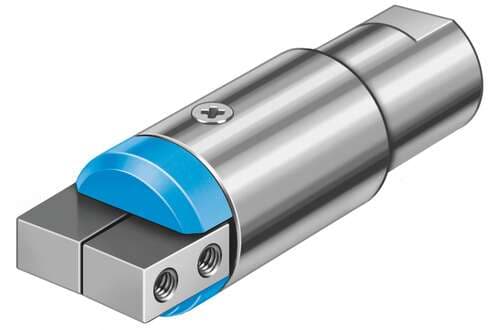

185698 Festo Grippers

Product Details

• Max. opening angle
  14 deg
• Design
  Inclined plane
• Min. closing time at 6 bar
  2.5 ms
• Maximum torque on gripper jaw, Mx static
  0.2 Nm
• Housing material
  High-alloy stainless steel
• Max. gripper jaw angular play ax, ay
  0.5 deg
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Max. operating frequency of pneumatic gripper
  4 Hz
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Maximum force on gripper jaw Fz, static
  7 N
• Note on materials
  Free of copper and PTFE
• Max. gripper jaw backlash Sz
  0.03 mm
• Number of gripper jaws
  2
• Gripper function
  Angle
• Symbol
  00991898
• Spring return torque
  0.006 Nm
• Maximum torque on gripper jaw, My static
  0.2 Nm
• Type of mounting
  Clamped
• Cover cap material
  POM
• Size
  8
Mode of operation
Single-acting Closed
Operating pressure
2 bar ... 8 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Total gripping torque at 6 bar, opening
24 Ncm
Product weight
13 g
Type code
HGWM
Position sensing
None
Min. opening time at 6 bar
1 ms
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, Mz static
0.2 Nm
Pneumatic connection
M3
Gripper jaw material
High-alloy steel

Related documents 185698 Specs
