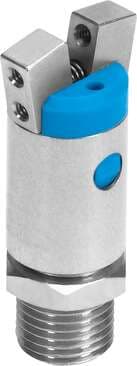

185694 Festo Grippers

Product Details

• Max. gripper jaw angular play ax, ay
  0.5 deg
• Number of gripper jaws
  2
• Position sensing
  None
• Ambient temperature
  5 °C ... 60 °C
• Total gripping torque at 6 bar, closing
  22 Ncm
• Pneumatic connection
  M3
• Gripper jaw material
  High-alloy steel
• Max. opening angle
  17 deg
• Design
  Inclined plane
• Operating pressure
  2 bar ... 8 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:-:-]
• Maximum torque on gripper jaw, My static
  0.2 Nm
• Cover cap material
  POM
• Type code
  HGWM
• Gripper function
  Angle
• Min. closing time at 6 bar
  1.2 ms
• Maximum force on gripper jaw Fz, static
  7 N
• Maximum torque on gripper jaw, Mz static
  0.2 Nm
• Housing material
  High-alloy stainless steel
• Mode of operation
  Single-acting Open
Max. operating frequency of pneumatic gripper
4 Hz
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Maximum torque on gripper jaw, Mx static
0.2 Nm
Product weight
14 g
Note on materials
Free of copper and PTFE
Size
8
Max. gripper jaw backlash Sz
0.03 mm
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Symbol
00991897
Min. opening time at 6 bar
2.7 ms
Spring return torque
0.005 Nm
Type of mounting
With lock nut
