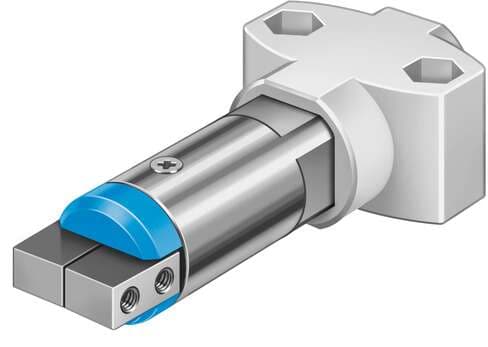

185696 Festo Grippers

Product Details

• Max. gripper jaw angular play ax, ay
  0.5 deg
• Number of gripper jaws
  2
• Position sensing
  None
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Spring return torque
  0.006 Nm
• Type of mounting
  With internal thread
• Max. opening angle
  14 deg
• Type code
  HGWM
• Max. operating frequency of pneumatic gripper
  4 Hz
• Symbol
  00991898
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mx static
  0.2 Nm
• Pneumatic connection
  M3
• Max. gripper jaw backlash Sz
  0.03 mm
• Mode of operation
  Single-acting Closed
• Operating pressure
  2 bar ... 8 bar
• Min. opening time at 6 bar
  1 ms
• Stroke compensation spring force
  4 N ... 6 N
• Maximum torque on gripper jaw, Mz static
  0.2 Nm
• Gripper jaw material
  High-alloy steel
Size
8
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Gripper function
Angle
Min. closing time at 6 bar
2.5 ms
Maximum force on gripper jaw Fz, static
7 N
Maximum torque on gripper jaw, My static
0.2 Nm
Note on materials
Free of copper and PTFE
Design
Inclined plane
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Total gripping torque at 6 bar, opening
24 Ncm
Product weight
23 g
Cover cap material
POM
Housing material
High-alloy stainless steel

Related documents 185696 Specs
