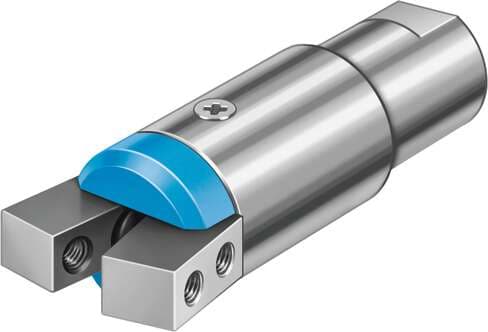

185695 Festo Grippers

Product Details

• Max. gripper jaw angular play ax, ay
  0.5 deg
• Type code
  HGWM
• Gripper function
  Angle
• Max. operating frequency of pneumatic gripper
  4 Hz
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mz static
  0.2 Nm
• Note on materials
  Free of copper and PTFE
• Max. gripper jaw backlash Sz
  0.03 mm
• Position sensing
  None
• Min. closing time at 6 bar
  1.2 ms
• Maximum force on gripper jaw Fz, static
  7 N
• Maximum torque on gripper jaw, Mx static
  0.2 Nm
• Max. opening angle
  17 deg
• Design
  Inclined plane
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:-:-]
• Spring return torque
  0.005 Nm
• Maximum torque on gripper jaw, My static
  0.2 Nm
• Pneumatic connection
  M3
• Gripper jaw material
  High-alloy steel
• Mode of operation
  Single-acting Open
Min. opening time at 6 bar
2.7 ms
Total gripping torque at 6 bar, closing
22 Ncm
Product weight
13 g
Cover cap material
POM
Size
8
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Number of gripper jaws
2
Symbol
00991897
Operating pressure
2 bar ... 8 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
Clamped
Housing material
High-alloy stainless steel

Related documents 185695 Specs
