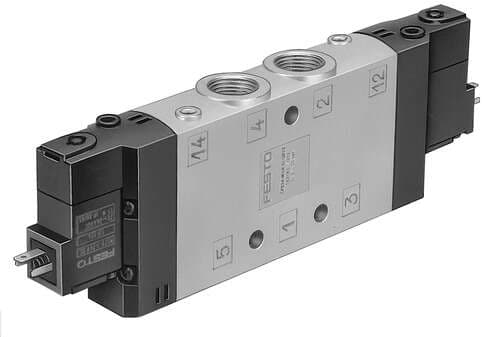

170339 Festo Directional Control Valves
Part#:170339
Alt. Part#:CPE24-M3H-5/3E-3/8
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
solenoid valve CPE24-M3H-5/3E-3/8 High component density Valve function: 5/3 exhausted, Type of actuation: electrical, Width: 24 mm, Standard nominal flow rate: 2650 l/min, Operating pressure: 2,5 - 10 bar
Product Details
- Maritime classification See certificate
- Standard nominal flow rate 2650 l/min
- Degree of protection IP65 as per IEC 60529
- Exhaust air function With flow control option
- Symbol 00991036
- Switching time off 55 ms
- Permissible voltage fluctuations -15 % / +10 %
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Temperature of medium -5 °C ... 50 °C
- Electrical connection Form C
- Pneumatic connection 1 G3/8
- Pneumatic connection 3 G3/8
- Valve function 5/3, exhausted
- Pneumatic working port G3/8
- Operating voltage 230V AC
- Mounting position Any
- Sealing principle Soft
- Flow direction Non-reversible
- Lap Overlap
- Design Piston gate valve
- Certification c UL us - Recognized (OL)
- Manual override Detenting via accessory Non-detenting
- Duty cycle 100%
- Max. negative test pulse on 1 signal 3100 µs
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Ambient temperature -5 °C ... 50 °C
- Pilot air port 12 M5
- Pneumatic connection 2 G3/8
- Seals material NBR
- Actuation type Electrical
- Reset method Mechanical spring
- Nominal width 11 mm
- Type of control Pilot-controlled
- On switching time 25 ms
- Valve position ID Label holder
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Product weight 430 g
- Pilot air port 14 M5
- Width 24 mm
- Operating pressure 2.5 bar ... 10 bar
- Type code CPE24
- Pilot air supply port Internal
- Max. positive test pulse with 0 signal 3300 µs
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot exhaust air port 84 M5
- Pilot exhaust air port 82 M5
- Note on materials RoHS-compliant
- Pneumatic connection 4 G3/8
- Coil characteristics 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting With through-hole
- Pneumatic connection 5 G3/8
- Housing material Die-cast aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
