162811 Festo Compressed Air Preparation Units

162811 on Powermatic Associates
Festo

Part#:162811

Alt. Part#:HE-3/4-D-MIDI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

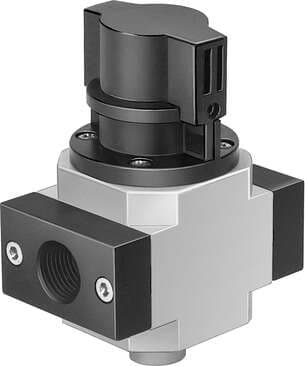

on-off valve HE-3/4-D-MIDI For service units, with threaded connecting plate Design structure: Piston slide, Type of actuation: manual, Sealing principle: soft, Exhaust-air function: not throttleable, Manual override: None

Product Details

  • Valve function
    3/2, bistable
  • Sealing principle
    Soft
  • Manual override
    None
  • b-value
    0.42
  • Standard nominal flow rate
    3800 l/min
  • Note on materials
    RoHS-compliant
  • Product weight
    511 g
  • Pneumatic connection 3
    G1/4
  • Design
    Piston gate valve
  • Exhaust air function
    Without flow control option
  • C value
    17.3 l/sbar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type of mounting
    Line installation With accessories
  • Pneumatic connection 1
    G3/4
  • Maritime classification
    See certificate
  • Actuation type
    Manual
  • Symbol
    00995571
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Temperature of medium
    -10 °C ... 60 °C
  • Flow direction
    Non-reversible
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Type code
    HE
  • Operating pressure
    0 bar ... 16 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Mounting position
    Any
  • Seals material
    NBR
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 2
    G3/4
  • Housing material
    Die-cast aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
