162866 Festo Pneumatic Fittings

162866 on Powermatic Associates
Festo

Part#:162866

Alt. Part#:CRQS-3/8-10

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

push-in fitting CRQS-3/8-10 male thread with external hexagon. Size: Standard, Nominal size: 6 mm, Assembly position: Any, Design: Straight design, Container size: 1

Product Details

  • Material of tubing seal
    FPM
  • Releasing ring material
    High-alloy stainless steel
  • Size
    Standard
  • Design
    Push-pull principle
  • Nominal width
    6 mm
  • Operating pressure for entire temperature range
    -0.95 bar ... 10 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
  • Ambient temperature
    -15 °C ... 120 °C
  • Pneumatic connection 1
    External thread R3/8
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 10 mm
  • Pack size
    1
  • For use in the food industry
    See supplementary material information
  • Maritime classification
    See certificate
  • Type code
    CRQS
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Product weight
    29 g
  • Note on materials
    RoHS-compliant
  • Type of mounting
    External hexagon, AF 17
  • Mounting position
    Any
  • Corrosion resistance class (CRC)
    4 - Particularly high corrosion stress
  • Usable connector cables
    PFAN
  • Housing material
    High-alloy stainless steel
  • Material of tube retaining claw
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

162866 Related Documents

162866 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

2030 on Powermatic Associates

2030

Festo

quick connector CK-1/4-PK-6 Male thread with sealing ring, metal version. Nominal size: 4,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accordanc

10 in stock
564801 on Powermatic Associates

564801

Festo

push-in connector QB-5/16T-1/4-U reducing. Size: Standard, Nominal size: 0,197 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

8 in stock
572311 on Powermatic Associates

572311

Festo

push-in fitting QBM-10-32-UNF-1/8-I-U Size: Mini, Nominal size: 0,094 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

3 in stock
572319 on Powermatic Associates

572319

Festo

push-in fitting QB-1/8-5/16-I-U Size: Standard, Nominal size: 0,189 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

7 in stock
533285 on Powermatic Associates

533285

Festo

push-in L-fitting QBML-10-32-UNF-1/8-U 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 0,098 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

4 in stock
533280 on Powermatic Associates

533280

Festo

push-in fitting QB-3/8-5/16-U male thread with external hexagon. Size: Standard, Nominal size: 0,252 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

6 in stock

Manufacturer warranty

162866 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 162866 with other Pneumatic Fittings products

Material of tubing seal

Releasing ring material

Size

Design

Nominal width

Operating pressure for en...

Operating medium

Ambient temperature

Pneumatic connection 1

Pneumatic connection 2

Selected product

162866
Backordered
162866
Festo

push-in fitting CRQS-3/8-10 male thread with external hexagon. Size: Standard, Nominal size: 6 mm, A...

Material of tubing sealFPM

Releasing ring materialHigh-alloy stainless steel

SizeStandard

DesignPush-pull principle

Nominal width6 mm

Operating pressure for entire temperature range-0.95 bar ... 10 bar

Operating mediumCompressed air as per ISO 85...

Ambient temperature-15 °C ... 120 °C

Pneumatic connection 1External thread R3/8

Pneumatic connection 2for pneumatic tubing outside...

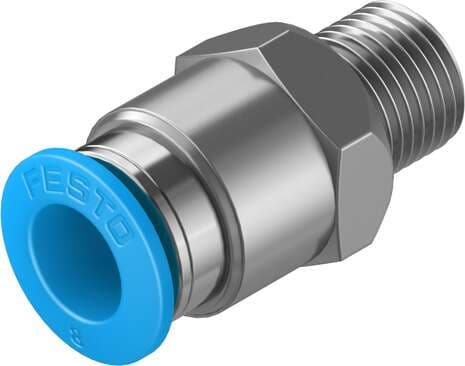

153004
