153002 Festo Pneumatic Fittings
Part#:153002
Alt. Part#:QS-1/8-6
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Mar 15, 2025
Product description
push-in fitting QS-1/8-6 male thread with external hexagon. Size: Standard, Nominal size: 5 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10
Product Details
- Type of seal on screwed trunnion Coating
- Ambient temperature -10 °C ... 80 °C
- Material of tube retaining claw High-alloy stainless steel
- Maritime classification See certificate
- Mounting position Any
- Temperature-dependent operating pressure -0.95 bar ... 14 bar
- Note on materials RoHS-compliant
- Type code QS
- Pack size 10
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
- Product weight 8.2 g
- Size Standard
- Design Push-pull principle
- Pneumatic connection 2 for pneumatic tubing outside diameter 6 mm
- Releasing ring material POM
- Nominal width 5 mm
- Operating pressure for entire temperature range -0.95 bar ... 6 bar
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Information on operating and pilot media Operation with oil lubrication possible
- Releasing ring color Blue
- Housing material Brass Nickel-plated
- Pneumatic connection 1 External thread R1/8
- Material of tubing seal NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
153002 Related Documents
Manufacturer warranty
153002 Festo
Get a quick Quote!
Request a quote, and we will send you price within minutes.
Stock:
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 153002 with other products
Type of seal on screwed t...
Ambient temperature
Material of tube retainin...
Maritime classification
Mounting position
Temperature-dependent ope...
Note on materials
Type code
Pack size
Operating medium
Product weight
Size
Design
Pneumatic connection 2
Releasing ring material
Nominal width
Operating pressure for en...
Corrosion resistance clas...
Information on operating ...
Releasing ring color
Housing material
Pneumatic connection 1
Material of tubing seal
Selected product
153002
Festo
push-in fitting QS-1/8-6 male thread with external hexagon. Size: Standard, Nominal size: 5 mm, Type...
Type of seal on screwed trunnionCoating
Ambient temperature-10 °C ... 80 °C
Material of tube retaining clawHigh-alloy stainless steel
Maritime classificationSee certificate
Mounting positionAny
Temperature-dependent operating pressure-0.95 bar ... 14 bar
Note on materialsRoHS-compliant
Type codeQS
Pack size10
Operating mediumCompressed air as per ISO 85...
Product weight8.2 g
SizeStandard
DesignPush-pull principle
Pneumatic connection 2for pneumatic tubing outside...
Releasing ring materialPOM
Nominal width5 mm
Operating pressure for entire temperature range-0.95 bar ... 6 bar
Corrosion resistance class (CRC)1 - Low corrosion stress
Information on operating and pilot mediaOperation with oil lubricati...
Releasing ring colorBlue
Housing materialBrass Nickel-plated
Pneumatic connection 1External thread R1/8
Material of tubing sealNBR

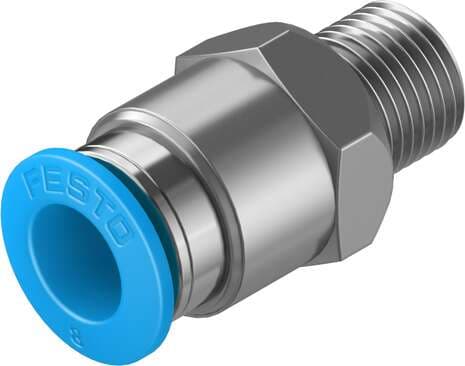

153003
