162863 Festo Pneumatic Fittings

162863 on Powermatic Associates
Festo

Part#:162863

Alt. Part#:CRQS-1/8-8

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

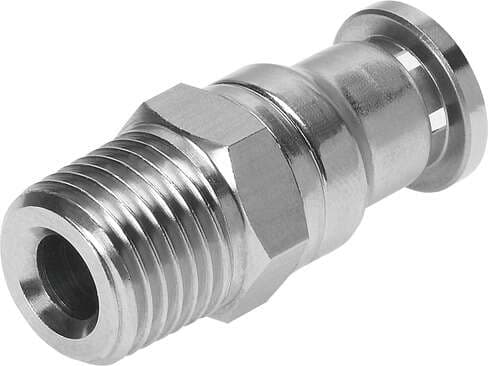

push-in fitting CRQS-1/8-8 male thread with external hexagon. Size: Standard, Nominal size: 5,1 mm, Assembly position: Any, Design: Straight design, Container size: 1

Product Details

  • Size
    Standard
  • Nominal width
    5.1 mm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
  • Product weight
    12 g
  • Housing material
    High-alloy stainless steel
  • Type of mounting
    External hexagon, AF 14
  • Pack size
    1
  • Maritime classification
    See certificate
  • Type code
    CRQS
  • Mounting position
    Any
  • For use in the food industry
    See supplementary material information
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 8 mm
  • Design
    Push-pull principle
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Usable connector cables
    PFAN
  • Material of tube retaining claw
    High-alloy stainless steel
  • Operating pressure for entire temperature range
    -0.95 bar ... 10 bar
  • Corrosion resistance class (CRC)
    4 - Particularly high corrosion stress
  • Pneumatic connection 1
    External thread R1/8
  • Ambient temperature
    -15 °C ... 120 °C
  • Note on materials
    RoHS-compliant
  • Material of tubing seal
    FPM
  • Releasing ring material
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
