162809 Festo Compressed Air Preparation Units

Name: 162809
Brand: Festo

Part#:162809

Manufacturer:Festo

Alt. Part#:HE-3/8-D-MIDI

Product Lifecycle:Active

Get a quick Quote!

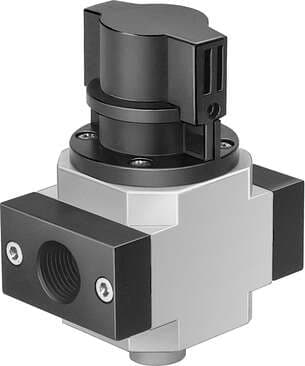

on-off valve HE-3/8-D-MIDI For service units, with threaded connecting plate Design structure: Piston slide, Type of actuation: manual, Sealing principle: soft, Exhaust-air function: not throttleable, Manual override: None

About the manufacturer: Festo is one of the manufacturers that offers Compressed Air Preparation Units that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 162809 Festo price in the box on the right side or send a quick quote.

Product Details

Mounting position
Any
Pneumatic connection 3
G1/4
Actuation type
Manual
Sealing principle
Soft
C value
15.7 l/sbar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Flow direction
Non-reversible
Seals material
NBR
Type code
HE
Symbol
00995571
b-value
0.3
Note on materials
RoHS-compliant
Maritime classification
See certificate
Manual override
None
Valve function
3/2, bistable
Standard nominal flow rate
3200 l/min
Temperature of medium
-10 °C ... 60 °C
Product weight
511 g
Air quality class at the output
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Design
Piston gate valve

Exhaust air function

Without flow control option

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Type of mounting

Line installation With accessories

Pneumatic connection 2

G3/8

Operating pressure

0 bar ... 16 bar

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas

Ambient temperature

-10 °C ... 60 °C

Pneumatic connection 1

G3/8

Housing material

Die-cast aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
