157101 Festo Pneumatic Actuators

157101 on Powermatic Associates
Festo

Part#:157101

Alt. Part#:AEVULQ-50-25-A-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

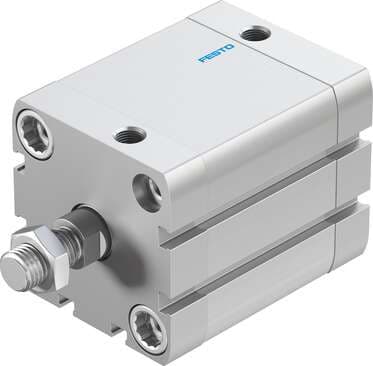

compact cylinder AEVULQ-50-25-A-P-A For proximity sensing. Secured against rotation by means of square piston rod. Stroke: 25 mm, Piston diameter: 50 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any, Mode of operati

Product Details

  • Type code
    AEVULQ
  • Mode of operation
    Single-acting Pushing
  • Design
    Piston Piston rod
  • Ambient temperature
    -20 °C ... 80 °C
  • Position sensing
    For proximity sensor
  • Piston rod material
    High-alloy steel
  • Mounting position
    Any
  • Symbol
    00991729
  • Operating pressure
    0.8 bar ... 10 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Theoretical force at 6 bar, advancing
    1121 N
  • Type of mounting
    Optionally: With accessories
  • Pneumatic connection
    G1/8
  • Stroke
    25 mm
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Variants
    Piston rod at one end
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Additional weight per 10 mm stroke
    72 g
  • Material of dynamic seals
    NBR TPE-U(PU)
  • Piston diameter
    50 mm
  • Piston rod end
    External thread
  • Protection against torsion/guide
    Square piston rod
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Impact energy in the end positions
    0.64 J
  • Additional moving mass per 10 mm stroke
    16 g
  • Basic weight with 0 mm stroke
    560 g
  • Flange screws material
    Steel, galvanized
  • Moving mass at 0 mm stroke
    112 g
  • Cover material
    Wrought aluminum alloy
  • Material of cylinder barrel
    Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

157101 Related Documents

157101 DataSheet.pdf
