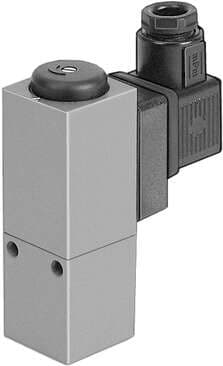

150261 Festo Pneumatic Components
Part#:150261
Alt. Part#:VPEV-1/8
Manufacturer:Festo
Category:Pneumatic Components
Product Lifecycle:Active
Product description
vacuum switch VPEV-1/8 Conforms to standard: EN 60947-5-1, Authorisation: CCC, CE mark (see declaration of conformity): to EU directive low-voltage devices, Materials note: Conforms to RoHS, Measured variable: Relative pressure
Product Details
- Operating pressure -1 bar ... 1.6 bar
- Explosion prevention and protection Observe the information on the certificate Zone 22 (ATEX)
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Max. switching output voltage AC 250 V
- Max. switching output voltage DC 125 V
- Switching contact material Silver
- CE marking (see declaration of conformity) As per EU low voltage directive
- Method of measurement Pneumatic/electric pressure transducer
- Temperature of medium -20 °C ... 80 °C
- Ambient temperature -20 °C ... 80 °C
- Utilization category for inductive load AC-14 DC-13
- Type of mounting With through-hole
- Housing material Wrought aluminum alloy
- Degree of protection IP65
- Conforms to standard EN 60947-5-1
- Note on materials RoHS-compliant
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Minimum load current 1 mA at 24 V 100 mA at 5V
- Pneumatic connection G1/8
- Setting range threshold value after conversion 0.16 bar ... 1.6 bar
- Symbol 00991471
- Measured variable Relative pressure
- Switching element function Changeover switch
- Max. output current 5000 mA
- Electrical connection Form A Rectangular design
- Product weight 240 g
- Switching status indication LED yellow
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type code VPEV
- Certification CCC
- Pressure measuring range -1 bar ... 1.6 bar
- Max. switching frequency 3 Hz
- Utilization category for ohmic load AC-12 DC-12
- Mounting position Any
- Setting range threshold value -0.95 bar ... -0.2 bar
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
