150238 Festo Pneumatic Components

150238 on Powermatic Associates
Festo

Part#:150238

Alt. Part#:PZVT-30-SEC

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

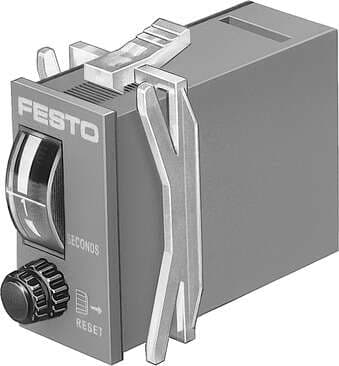

timer PZVT-30-SEC Design structure: mechanical sequence counter with pneumatic drive, Switch-off pressure: <: 0,1 bar, Operating pressure: 2 - 6 bar, Switch-on pressure: >: 1,6 bar, Standard nominal flow rate: 50 l/min

Product Details

  • Operating pressure
    2 bar ... 6 bar
  • Setting accuracy
    ± 0.6 s
  • Ambient temperature
    -10 °C ... 60 °C
  • Product weight
    45 g
  • Type code
    PZVT
  • Switch-on pressure
    ≥ 1.6 bar
  • Repetition accuracy of time setting
    ± 0.3 s
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Pneumatic connection
    Internal thread M5
  • Switch-off pressure
    ≤ 0.1 bar
  • Standard nominal flow rate
    50 l/min
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Pause period for reset
    ≥ 200 ms
  • Degree of protection
    IP54 as per IEC 60529
  • Housing material
    ABS
  • Design
    Mechanical sequence counter with pneumatic actuator
  • Adjustable delay time
    2 s ... 30 s
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Type of mounting
    Front panel mounting
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

150238 Related Documents

150238 DataSheet.pdf
