150289 Festo Actuator Accessories

150289 on Powermatic Associates
Festo

Part#:150289

Alt. Part#:FENG-32-250-KF

Manufacturer:Festo

Category:Actuator Accessories

Product Lifecycle:Active

Product description

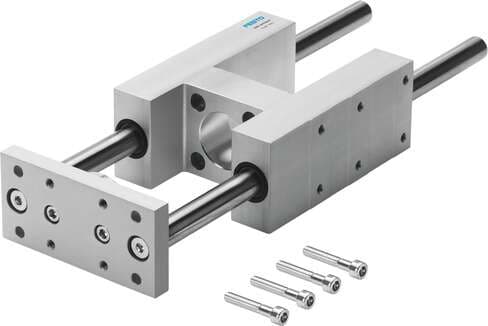

guide unit FENG-32-250-KF with recirculating ball bearing guide, serves for protection against rotation, provides a high accuracy of guidance. Size: 32, Stroke: 250 mm, Assembly position: Any, Guide: Recirculating ball bearing guide, Design structure: Gui

Product Details

  • Max. force Fz static
    1020 N
  • Max. static moment My
    46 Nm
  • Size
    32
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Mounting position
    Any
  • Max. force Fy static
    1020 N
  • Max. torque Mz
    34 Nm
  • Housing material
    Wrought aluminum alloy, anodized
  • Type code
    FENG
  • Design
    Guide
  • Max. force Fy
    750 N
  • Max. torque Mx
    28 Nm
  • Max. static moment Mz
    46 Nm
  • Displacement force
    15 N
  • Material of yoke plate
    Wrought aluminum alloy, anodized
  • Stroke
    250 mm
  • Guide
    Recirculating ball bearing guide
  • Max. force Fz
    750 N
  • Max. torque My
    34 Nm
  • Type of mounting
    With internal thread
  • Ambient temperature
    -20 °C ... 80 °C
  • Max. static moment Mx
    38 Nm
  • Product weight
    1980 g
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Material of guide component
    Tempered steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
